DIG5 Series Full Digital Wired Conference System
Full digital flush mounted CAT5 discussion unit
● The chairman has the priority function and can close all the speaking delegate units;
● The chairman unit can initiate and end the sign-in function;
● The chairman unit can initiate three-button voting (affirmative/abstention/negative) to end the voting;
● Support sign-in function;
● Can be used in combination;
● Adopt high-quality metal frosted shell, which is simple, beautiful and atmospheric;
● Good quality buttons, which have a long service life;
● Support 31+1 simultaneous interpretation;

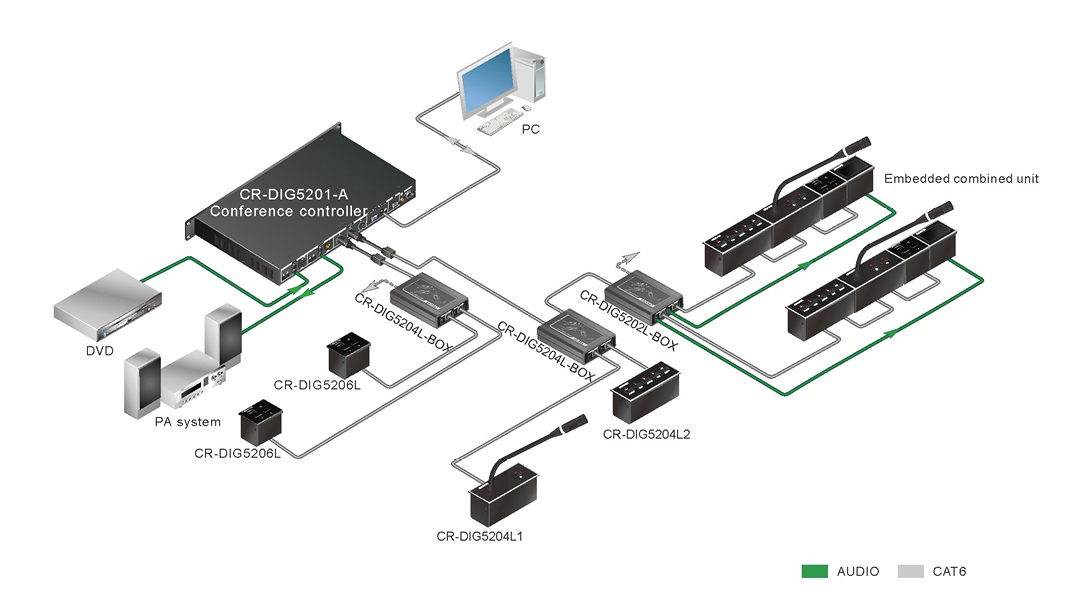

● Support hand in hand connection;
● Three voting methods are supported:
A) Voting method: Yes/Obtain/No;
B) Election method/investigation method: 1/2/3/4/5;
C) Response method/evaluation method: ---/-/0/+/++;
● CR-DIG5202/04L-BOX:
A) Two RJ45 interfaces can be connected to the embedded RJ45 interface unit;
B) Support hand in hand connection;
C) With signal light indication, it can reflect the connection of the unit in real time and facilitate the analysis of fault problems;
D) Support hot plugging.

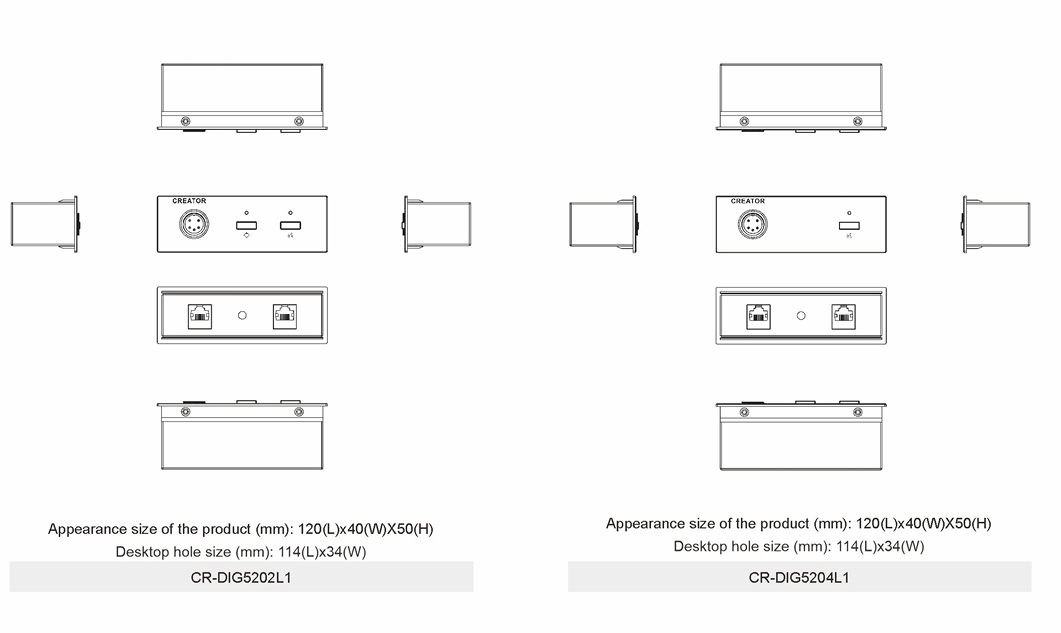

| The parameter name | CR-DIG5202/04L1 | |||
|---|---|---|---|---|
| Signal-to-noise ratio | >80dB | |||
| Total harmonic distortion | <0.05% | |||
| The microphone parameters | Cartridge type | Capacitive heart type single direction | ||
| Sensitivity | -46dBV/pa | |||
| Frequency response | 20Hz-20KHz | |||
| Input impedance | 2.2K | |||
| Frequency response | 20Hz-20KHz | |||
| Unit interface type/Quantity | RJ45/2 | |||
| Power consumption | 0.076W | |||
| Weight | 227g | |||
| Color | Black/Gray | |||

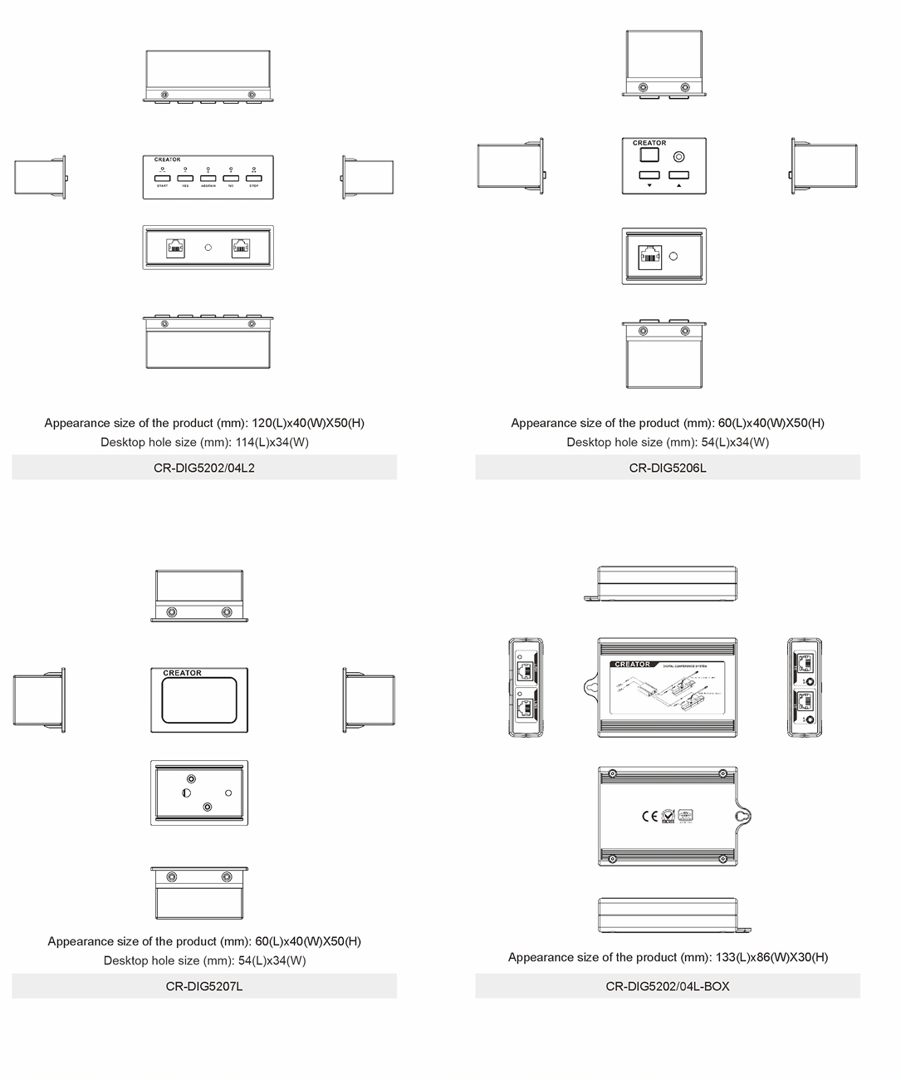

| The parameter name | CR-DIG5202/04L2 | |||
|---|---|---|---|---|
| Unit interface type/Quantity | RJ45/2 | |||
| Power consumption | 0.003W | |||
| Weight | 227g | |||
| Color | Black/Gray | |||
| The parameter name | CR-DIG5206L | |||
|---|---|---|---|---|
| Frequency response | 20Hz-20KHz | |||
| Signal-to-noise ratio | >80dB | |||
| Channel crosstalk | >80dB | |||
| Total harmonic distortion | <0.05% | |||
| Headphone output | Earphone load | >8 ohm | ||
| The earphone volume | 10mW | |||
| Unit interface type/Quantity | RJ45/1 | |||
| Power consumption | 0.044W | |||
| Weight | 118g | |||
| Color | Black/Gray | |||
| The parameter name | CR-DIG5207L | |||
|---|---|---|---|---|
| Power consumption | 1W | |||
| Weight | 141g | |||
| Color | Black/Gray | |||
| The parameter name | CR-DIG5202/04L-BOX | |||
|---|---|---|---|---|
| Power supply | The controller power supply | |||
| Interface type/Quantity | RJ45*4, 3.5mm audio*1 | |||
| Cable length | CAT5e shorter than 50m | |||
| Max power consumption | Less than 1.5w for 2 set units | |||
| Weight | 150g | |||
| Color | Dark gray | |||
