CR-DIG5203E3
Full digital interpreter unit
CR-DIG5203E3
The CR-DIG5203E3 Full digital interpreter unit is a full digital interpreter unit designed for professional multilingual conference and simultaneous interpretation applications. It supports up to 31+1 language channels and provides direct and indirect interpretation functions for international conferences, government meetings, business events, educational institutions, and other multilingual communication environments.
With built-in high-speed DSP processing, a 320 × 64 LCD display, digital audio processing, multiple audio connection options, and comprehensive interpreter functions, the CR-DIG5203E3 Full digital interpreter unit provides a clear and efficient operating interface for professional interpretation.
INQUIRY
With built-in high-speed DSP processing, a 320 × 64 LCD display, digital audio processing, multiple audio connection options, and comprehensive interpreter functions, the CR-DIG5203E3 Full digital interpreter unit provides a clear and efficient operating interface for professional interpretation.
Features
Specifications
Diagram

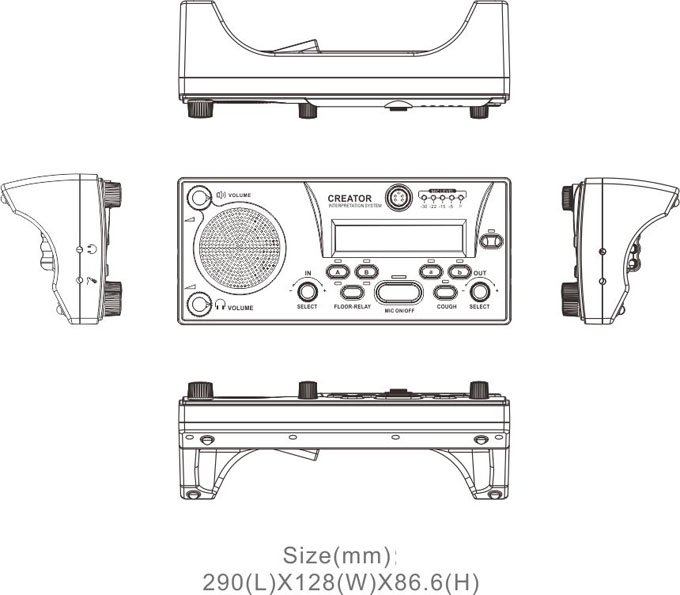

Drawing
Downloads
The CR-DIG5203E3 Full digital interpreter unit is a professional interpreter desk designed to operate as part of a complete simultaneous interpreter system.
It supports 31+1 language channels and allows interpreters to perform direct or indirect interpretation according to the requirements of the conference. The unit uses digital audio technology with built-in high-speed DSP processing to provide clear audio reproduction across the interpretation process.
The 320 × 64 blue LCD screen provides clear information for channel selection, operating status, and other interpreter functions. A heart-shaped directional capacitive microphone pickup helps capture the interpreter's voice, while the dual-color indicator provides clear speaking status feedback.
The interpreter unit also integrates a loudspeaker, headphone interfaces, volume controls, input and output channel shortcuts, timing functions, internal communication, short messaging, tea service, and cough-relief functions.
As part of the CREATOR wireless infrared interpretation platform, the CR-DIG5203E3 can be integrated with infrared transmitting and receiving equipment to build a professional simultaneous interpreter system for multilingual conferences. CREATOR's wireless infrared interpretation platform supports up to 31+1 language channels and is designed for professional conference environments.
Features
31+1 Language Channel Support
The CR-DIG5203E3 supports up to 31+1 language channels, allowing multiple languages to be distributed within a professional multilingual conference system.This makes the unit suitable for international conferences, diplomatic meetings, multinational events, and other applications requiring multilingual communication.
Direct and Indirect Interpretation
The unit supports both direct interpretation and indirect interpretation.Direct interpretation allows the interpreter to translate directly from the original language into the required target language. Indirect interpretation allows an interpreter to work from another interpretation channel when direct language support is not available.
This flexible architecture is important for large multilingual events where multiple language combinations may be required.
High-Speed DSP Digital Audio Processing
Built-in high-speed DSP processing provides digital audio processing for clear and stable interpretation.The system provides a 20Hz–20kHz frequency response, supporting a wide audio range for speech reproduction and professional interpretation applications.
320 × 64 LCD Display
The integrated 320 × 64 blue LCD display provides clear information during interpretation.The display helps interpreters monitor system status, channel information, and operating functions without relying on external equipment.
Directional Capacitive Microphone
The CR-DIG5203E3 uses a heart-shaped directional capacitive pickup designed to focus on the interpreter's voice.A dual-color indicator provides visual feedback, with the red indicator showing when the microphone is active.
Multiple Audio Monitoring Options
The unit includes a built-in loudspeaker and headphone interfaces, allowing interpreters to monitor the floor channel or interpretation channels according to the conference configuration.Separate volume adjustment for the loudspeaker and headset allows interpreters to customize their monitoring level.
Headset and Pluggable Microphone Support
The interpreter unit supports both headset microphones and plug-in microphone configurations, providing greater flexibility for different booth and conference room setups.
Internal Interpreter Communication
The unit supports internal communication between interpreter positions, allowing interpreters and operators to coordinate during multilingual events.
Short Message and Tea Service Functions
The system provides short message and tea service functions for interpreter communication and on-site service coordination.
Cough Relief Function
The cough-relief function allows the interpreter to temporarily mute the microphone without affecting the overall interpretation workflow.
Operator Unit Function
The interpreter unit can be configured as an operator unit, providing additional control flexibility for professional interpretation environments.
Channel Shortcuts
Input and output channel shortcut functions help interpreters quickly select the required language channels and simplify operation during live conferences.
Timing Function
The integrated timing function helps interpreters monitor interpretation time during long meetings and multilingual events.
Scalable Interpreter Deployment
The CREATOR interpretation system is designed to support a large number of interpreter units. The official product category describes the interpreter unit as suitable for professional wireless infrared interpretation systems with up to 31+1 language channels.

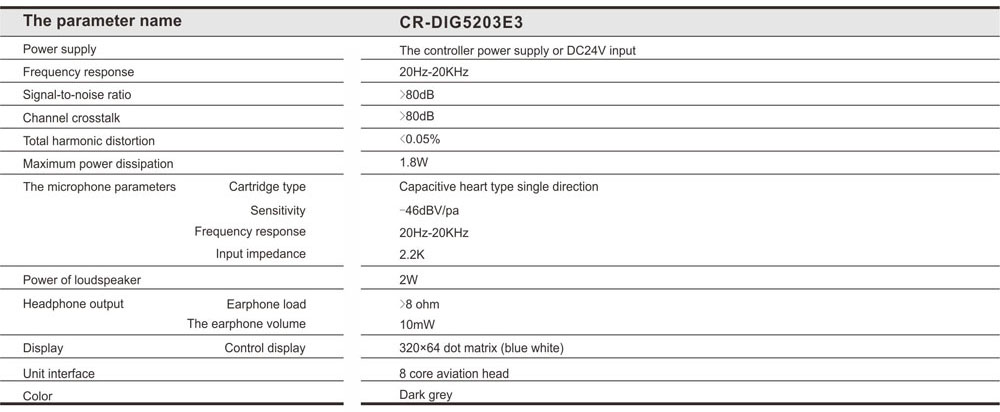

| The parameter name | CR-DIG5203E3 |
|---|---|
| Power supply | The controller power supply do DC24V input |
| Frequency response | 20Hz-20KHz |
| Signal-to-noise ratio | >80dB |
| Channel crosstalk | >80dB |
| Total harmonic distortion | <0.05% |
| Maximum power dissipation | 1.8W |
| The microphone parameters - Cartridge type | Capacitive heart type single direction |
| The microphone parameters - Sensitivity | −46dBV/pa |
| The microphone parameters - Frequency response | 20Hz-20KHz |
| The microphone parameters - Input impedance | 2.2K |
| Power of loudspeaker | 2W |
| Headphone output - Earphone load | >8 ohm |
| Headphone output - The earphone volume | 10mW |
| Display - Control display | 320×64 dot matrix (blue white) |
| Unit interface | 8 core aviation head |
| Color | Dark grey |

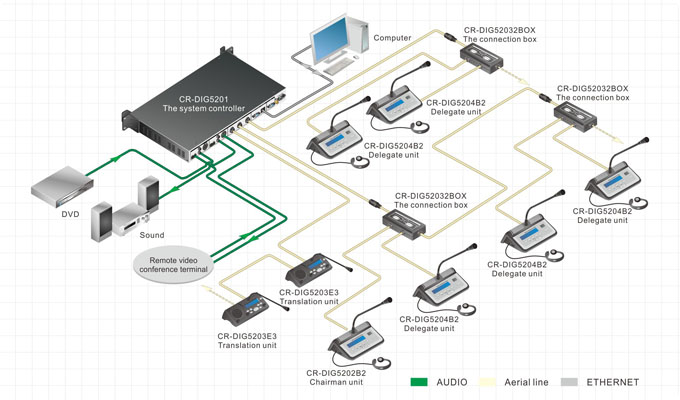

How the Interpreter Unit Works in a Simultaneous Interpretation System
The CR-DIG5203E3 functions as the interpreter's operating terminal within a complete simultaneous interpreter system.
During a multilingual conference, the interpreter receives the floor language or another interpretation channel, performs the interpretation, and sends the translated audio to the assigned language output channel.
The complete CREATOR wireless infrared interpretation solution combines the interpreter unit with infrared transmission and receiving equipment. The system supports multiple language channels and distributes interpreted audio wirelessly to participants. CREATOR states that its infrared interpretation system can support up to 31+1 language channels.
This system architecture allows interpreters to concentrate on translation while conference participants select and listen to the required language channel through compatible receivers.
Applications
International Conferences
The CR-DIG5203E3 is suitable for international conferences where multiple languages need to be interpreted and distributed simultaneously.The 31+1 channel architecture provides flexibility for conferences involving multiple language groups.
Government and Diplomatic Meetings
Government meetings, diplomatic events, and international organizations often require professional multilingual communication. The interpreter unit provides direct and indirect interpretation capabilities together with dedicated communication and monitoring functions.
Business Conferences
Multinational companies can deploy the unit in international business meetings, seminars, product launches, and corporate events where participants speak different languages.
Educational Institutions
Universities, training centers, and international educational organizations can use a professional simultaneous interpreter system for multilingual lectures, seminars, forums, and academic conferences.
Exhibition and Large-Scale Events
The system can be deployed for international exhibitions, forums, congresses, and other events where interpretation must be distributed to a large number of listeners.
Conference and Meeting Rooms
The compact interpreter unit can be integrated into professional conference room interpretation systems together with conference microphones, infrared transmitters, radiation panels, and receivers.CREATOR's wireless infrared interpretation system is specifically positioned for multilingual conferences, international events, educational institutions, and meeting environments.
Benefits of a Digital Interpreter Unit
A professional digital interpreter unit provides interpreters with a dedicated interface instead of relying on general audio equipment.
The CR-DIG5203E3 combines microphone control, channel selection, audio monitoring, display information, communication, and timing functions in one operating terminal.
Its direct and indirect interpretation support is particularly useful for multilingual events where interpreters may need to work between several language channels.
Digital audio processing and a 20Hz–20kHz frequency response also help maintain clear speech reproduction throughout the interpretation process.
FAQ
What is the CR-DIG5203E3 Full digital interpreter unit ?
The CR-DIG5203E3 is a full digital interpreter unit designed for professional multilingual conferences and interpretation applications. It supports direct and indirect interpretation and up to 31+1 language channels.
What does an interpreter unit do?
An interpreter unit provides the interpreter with the controls needed to receive an input language, select interpretation channels, speak the translated language, monitor audio, and communicate with other interpreter positions.
How many languages does the CR-DIG5203E3 Full digital interpreter unit support?
The CR-DIG5203E3 supports up to 31+1 language channels within the CREATOR interpretation system.
What is the cough-relief function?
The cough-relief function allows the interpreter to temporarily mute the microphone when coughing or during other brief interruptions.
