10.26-inch dual screen electronic nameplate
CR-TOUCH2200
CR-TOUCH2200 adopts dual-screen display, true color 10-bit, bright red, green and blue design, displaying the names, positions and other information of the participants. The one-piece aluminum alloy base + dazzling organic glass transparent frame makes it more technological and fashionable.
INQUIRY
Features
Specifications

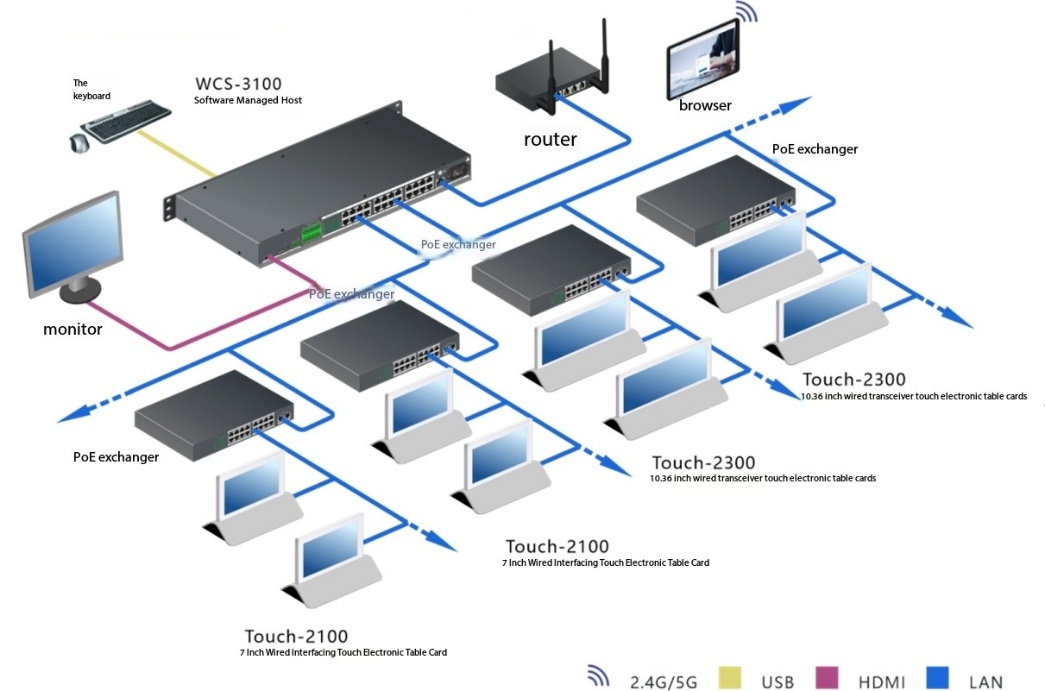

Diagram
Drawing
Downloads
- It adopts 10.26-inch TFT dual-screen display, true color 10-bit touch screen, bright red, green and blue design, plus transparent plexiglass frame to display the names, positions, unit names, LOGO, emblem, monogram and other information of the participants;
- Using 1.7G domestic processor RK3399 chip; resolution supports 1024*600;
- Support POE and independent power supply DC12V dual power supply mode; supports local and wireless control, batch input;
- Support sign-in and voting function;
- Equipped with touch function for tea call service.
| Parameters | CR-TOUCH2200 |
|---|---|
| Screen | 24: 9 TFT, 10.26 inches, 2 pieces |
| Display color | 10 bit true color, RGB |
| Resolution | 1600X600 |
| Brightness | 450nl |
| CPU | PK 3399 |
| Dominant frequency | 1.7G |
| Memory | 1G |
| Touch screen | 10.26-inch capacitive touch screen (single sided) |
| Power supply | POE or DC 12V |
| Interface | Rj45 interface/DC 12V |
| Size | 271LX104WX146Hmm |
