EMAX-OUT SF2

4K fiber output card

EMAX-OUT SF2

The EMAX-OUT-SF2 is a high-reliability expansion card engineered for long-range, secure video distribution within modular matrix systems. By utilizing two dedicated SFP slots, this module enables the transmission of uncompressed high-definition video over optical fiber, effectively eliminating the distance limitations and potential ground loops inherent in copper-based cabling.

INQUIRY

Features

Specifications

Diagram

Drawing

Downloads

● 2 single core fiber output;
● Support hot swapping;
● Equipped with a fiber optic transmitter, it can achieve a maximum input signal transmission of 20Km (single mode);
● Maximum supported resolution: 3840x2160P@30 .

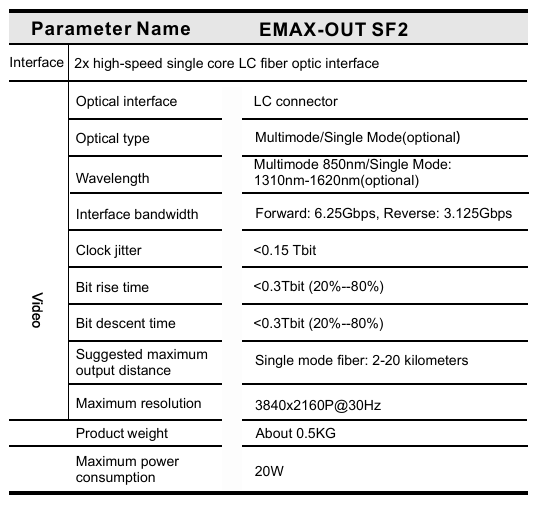

Parameter Name		EMAX-OUT SF2
Interface		2x high-speed single core LC fiber optic interface
Video	Optical interface	LC connector
	Optical type	Multimode/Single Mode(optional)
	Wavelength	Multimode 850nm/Single Mode: 1310nm-1620nm(optional)
	Interface bandwidth	Forward: 6.25Gbps, Reverse: 3.125Gbps
	Clock jitter	<0.15 Tbit
	Bit rise time	<0.3Tbit (20%--80%)
	Bit descent time	<0.3Tbit (20%--80%)
	Suggested maximum output distance	Single mode fiber: 2-20 kilometers
	Maximum resolution	3840x2160P@30Hz
	Product weight	About 0.5KG
Maximum power consumption		20W
