4K distributed codec
CR-ECIS4A
CR-ECIS4A codec is a processing center for audio and video signal acquisition, encoding and decoding, and supports HDMI signal format. No matter the input and output types of a single distributed codec, the distributed system is completely decentralized, the core chips adopted are produced nationwide, and the independently developed image processing technology is used to encode and decode the video signals. The integrated audio and video signals can be transmitted through the network. The codec also integrates the KVM remote desktop and other functions, which are convenient for application in various application scenarios.
INQUIRY
Features
Specifications

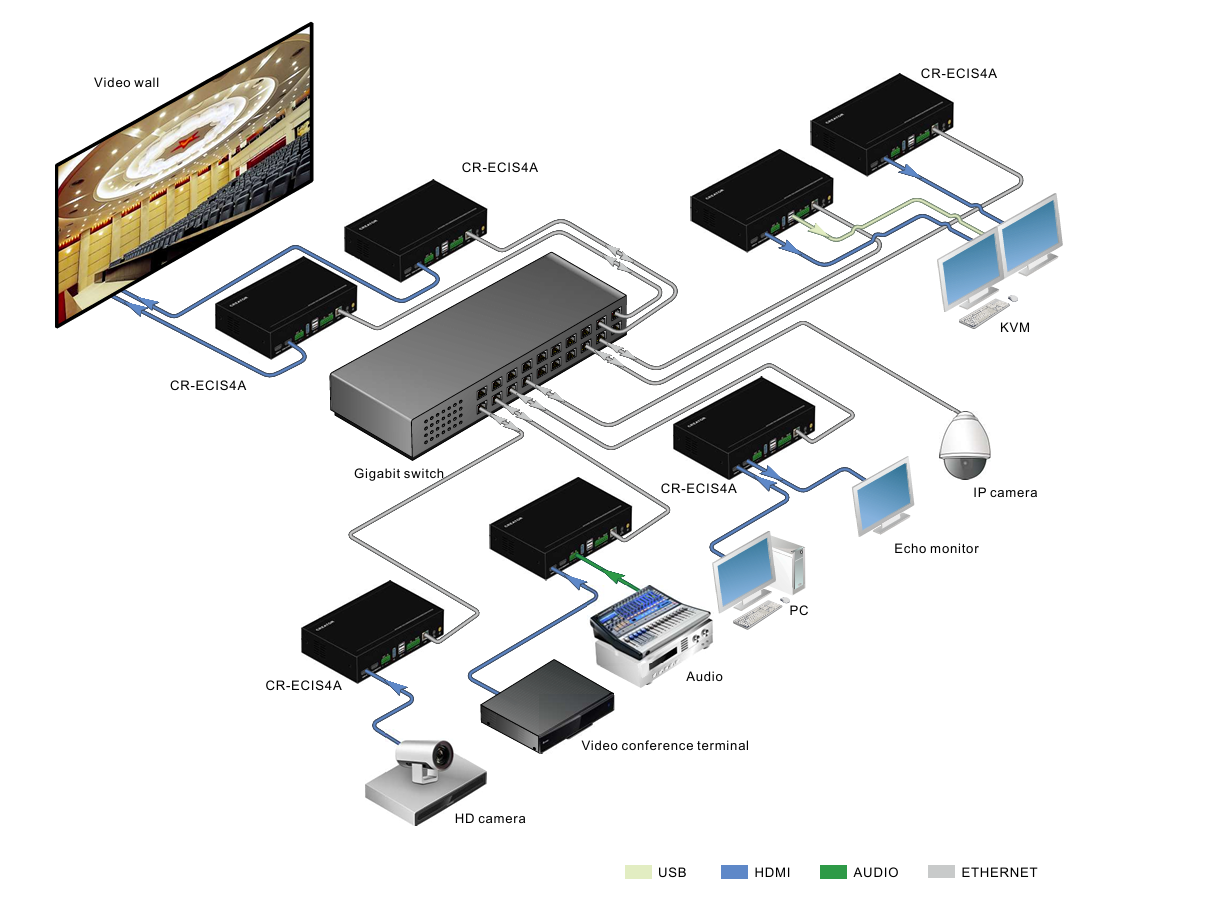

Diagram

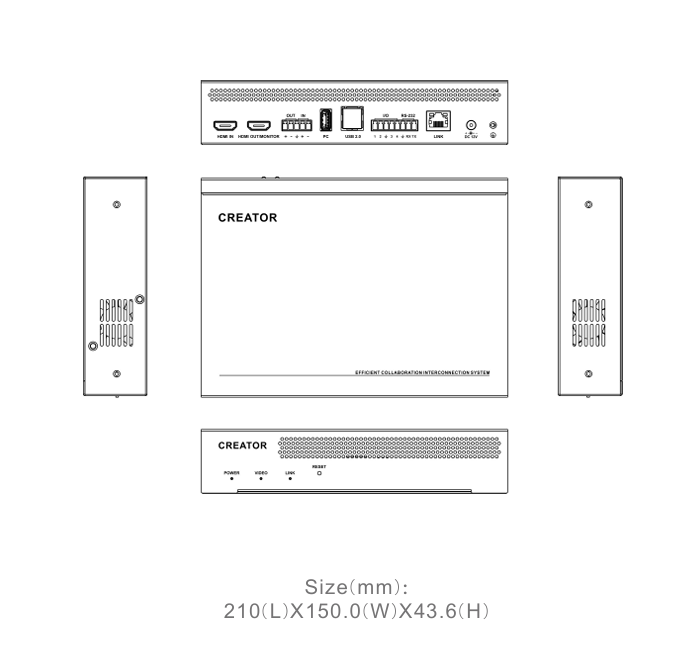

Drawing
Downloads
● Built in high-definition video signal processing chip, images are delicate, clear, and reliable;
● Supports 1x HDMI1.3/1.4/2.0 signal input;
● Supports 1x HDMI1.3/1.4/2.0 signal loop out/output;
● Support for collection and encoding 3840* 2160@30Hz Image signal to ensure image details and smoothness;
● HDMI output interface supports up to 3840* 2160@30Hz , supports HDMI1.3/1.4/2.0 output, and supports automatic EDID recognition;
● Support subtitles and logo overlay;
● 1x PC interface, built-in KVM (Keyboard Video Mouse) function, supporting IP remote desktop, achieving a set of keyboard and mouse management for multiple target devices;
● The windows can be opened, roamed, overlaid, and automatically reduced in frequency;Single node supports 16 windows to roam and stack arbitrarily; Support maximum 16 * 16 splicing;
● 1x USB2.0 interface, supporting device local system updates;
● 1x RJ45 LAN port, supporting device network system updates;
● 1x LINE OUT line output and 1x LINE IN line input;
● Reserved programmable control interface, 1x 232 serial port, 4x IO ports.
| The parameter name | CR-ECIS4A |
|---|---|
| Loop out monitor | 1x HDMI loop out monitor interface |
| I/O | 4x 2-pin Phoenix I/O interfaces |
| RS-232 | 1x 3-pin Phoenix socket serial interface |
| Power | DC12V 2.5A |
| Weight | 0.84KG |
| Power consumption | Full load < 15W |
| The parameter name | CR-ECIS4A |
|---|---|
| Video | 1 HMDI input, 1 HDMI output(monitor) |
| Audio | 1 phoenix port input, 1 phoenix port output |
| Network port | 1 Gigabit network port |
| USB | 1 USB3.0 interface, 2 USB2.0 interfaces |
| Indicator light | 1 power indicator, 1 video status indicator, 1 network status indicator |
| Device size(mm) | 210(L)x150(W)x43.6(H) |
| Package size(mm) | 350(L)x260(W)x80(H) |
