4K distributed codec
CR-ECIS4P
CR-ECIS4P is a codec that supports 4K@60Hz, with a maximum resolution of input for 3840*2160@60 , output for 3840* 2160@60. It can be set as either encoder or decoder, which is convenient for application in various application scenarios.
INQUIRY
Features
Specifications

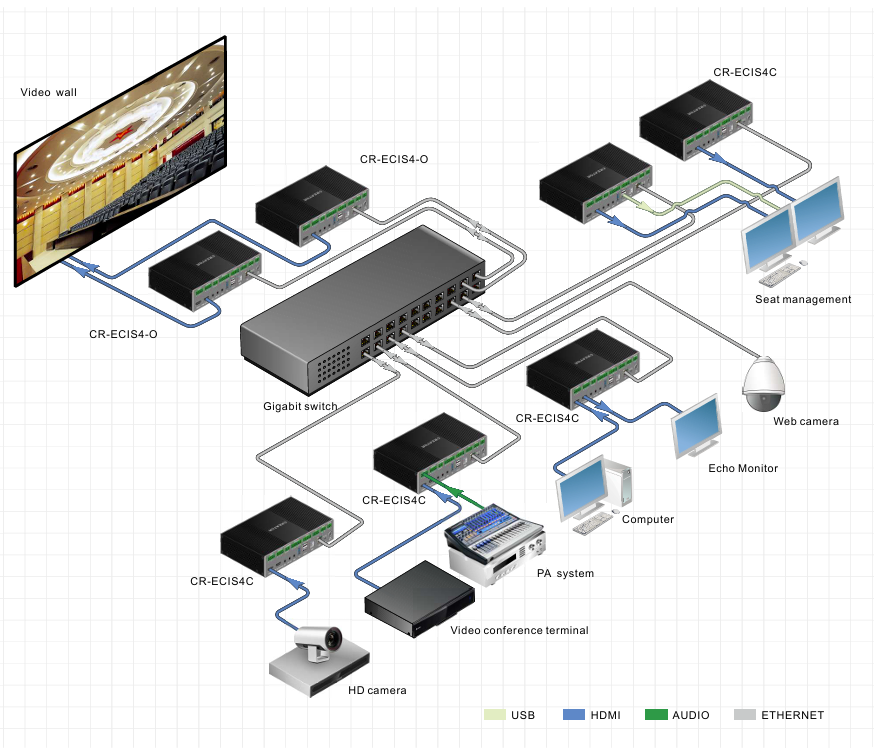

Diagram
Drawing
Downloads
● Built in high-definition video signal processing chip, with delicate, clear and reliable images;
● 1 HDMI input interface, maximum support 4K@60 Video signal;1 HDMI output interface, maximum support 4K@60 Video signal;
● Support live loop output (when working as an encoder);
● 1x3.5 interface MIC audio input, supporting active stereo audio input and microphone (gain adjustable) input;
● 1x3.5 interface LINE OUT stereo audio output;
● 1x5P Phoenix interface LINE In stereo balanced audio input;
● 1x5P Phoenix interface LINE OUT stereo balanced audio output;
● 1xUSB mouse and keyboard output;2xUSB2.0, system updates and upgrades, mouse keyboard KVM control;
● 1x Gigabit optical port, 1x Gigabit network port, capable of achieving optical and electrical mutual backup;
● 2x independent programmable RS-232 control interfaces, users can program and set multiple control protocol codes;
● 1x independent programmable RS-485 control interface, users can program and set multiple control protocols and codes;
● 2x independent programmable infrared emission interfaces, supporting control of multiple identical or different infrared devices;
● 2x weak current relay interface with 30V 1A load test;
● 4x digital input/output IO interface with 50mA load test;Front mounted 2.23-inch OLED display screen with a resolution of 128x32, supporting device information display;
● DC12V power adapter or POE (optional) power supply.
| Parameter | CR-ECIS4P |
|---|---|
| RAM | 4GB |
| Flash | 512MB |
| OS | Linux |
| Video decoding | H.264/H.265 3840x2160@60fps |
| Video | 1x HDMI2.0 input, 1x HDMI2.0 output (downward compatible) |
| Audio | 1x 5 pin Phoenix input, 1x 5 pin Phoenix output, 1x 3.5mm audio input, 1x 3.5 audio output |
| Network interface | 1x gigabit optical fiber interface (optional), 1x gigabit RJ45 network interface |
| USB | 1x USB3.0 interface, 2x USB2.0 interface |
| Indicator light | 1x link status LED, 1x power LED, 1x video status LED |

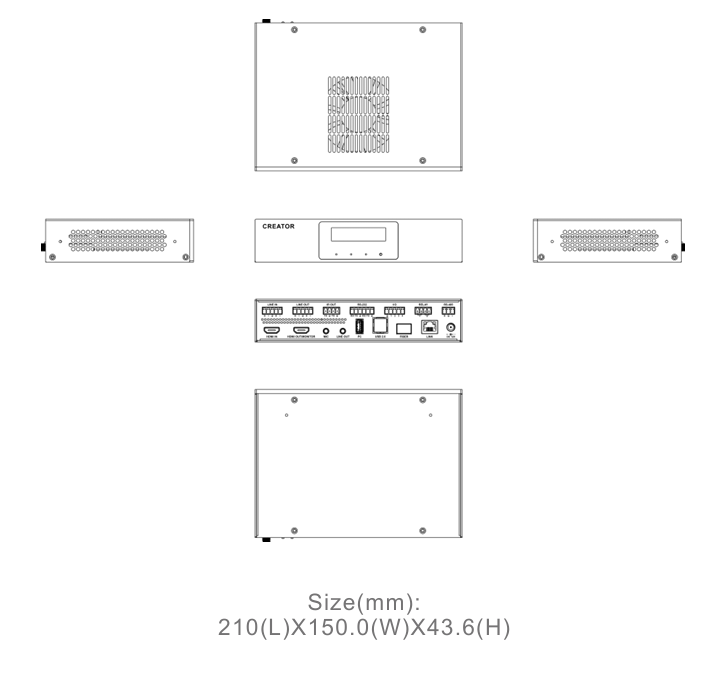

| Product size | 210(L)x150(W)x43.6(H) |
| Parameter | CR-ECIS4P |
|---|---|
| Relay | 2x 2 pin Phoenix relay interface |
| IR out | 2x Phoenix infrared interface |
| RS-232 | 2x 3 pin Phoenix serial interface |
| RS-485 | 1x 3 pin Phoenix 485 interface |
| I/O | 4x I/O control interface |
| Display | 2.23-inch OLED screen, 128x32 resolution |
| Power supply | DC12V 1.5A or POE(optional) |
| Weight | About 0.7KG |
| Power consumption | 15W |
