CR-ZJ08-12V
Rack type codec power box
CR-ZJ08-12V
CR-ZJ08-12V is a rack plug-in distributed rack power box, which is mainly used with CR-ECIS series distributed codecs. It is convenient to install the distributed encoder and decoder in a unified cabinet, manage power supply in a unified way, and only 8 codecs can be inserted at most.
INQUIRY
Features
Specifications

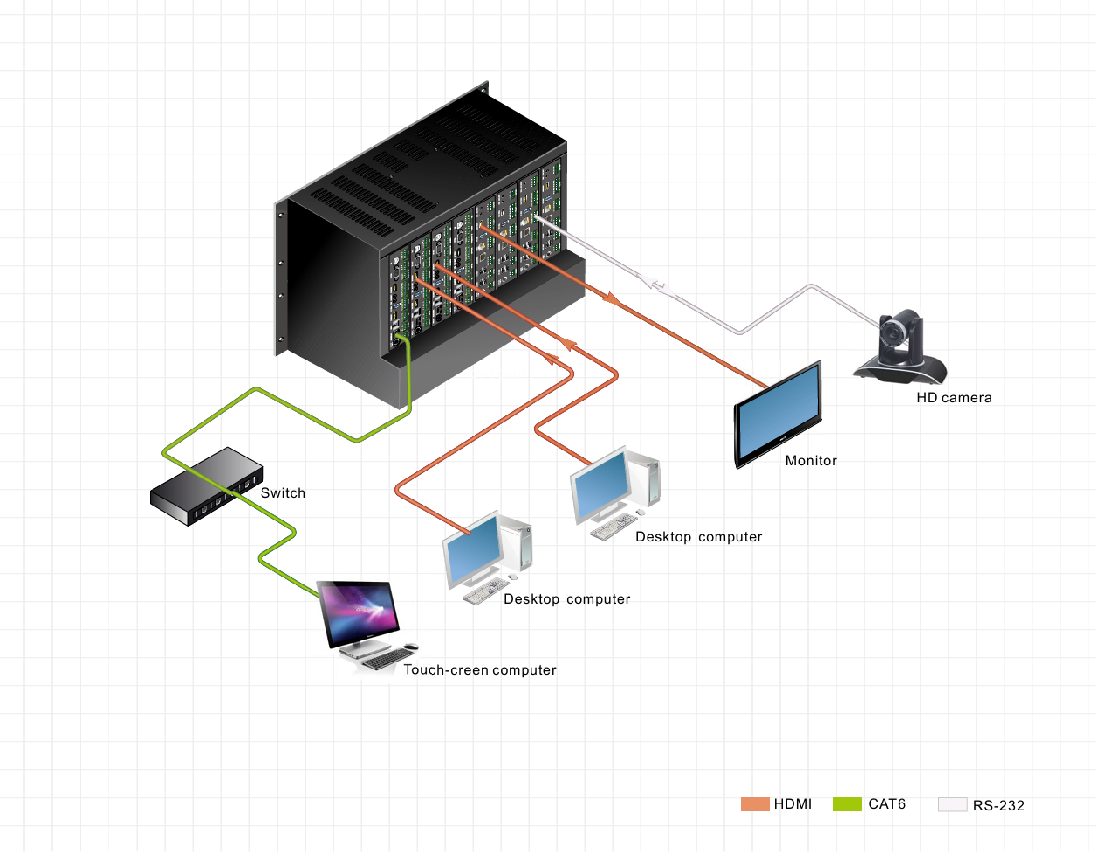

Diagram

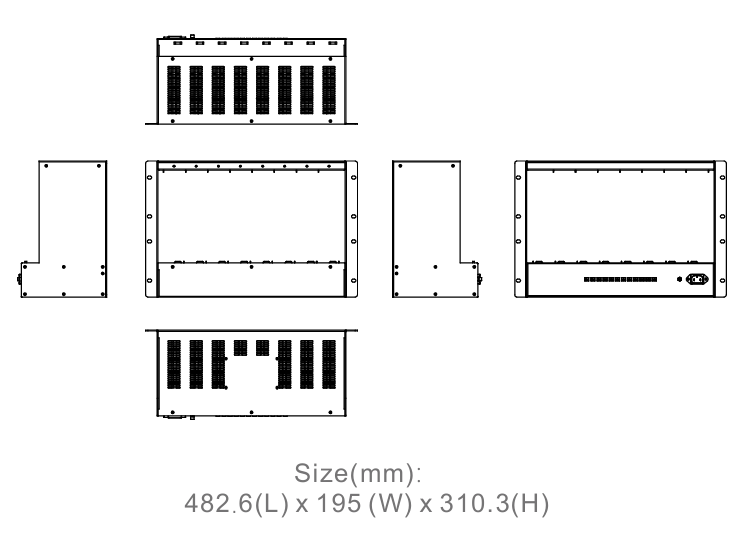

Drawing
Downloads
● Support the installation of up to 8 codecs, size: 7U;
● Support dual power supply (optional) for the chassis, with redundant power supply backup;
● It supports centralized power supply for all distributed nodes, and does not require separate configuration of distributed adapters for power supply;
● Support HDMI audio and video signal interface;
● Support no less than 8-channel video coding input and output (support HDMI-4K signal format);
● Support H.264/H.265 encoding and decoding mode; It supports unicast multicast, and high and low code streams can be output at the same time.
| Parameter | CR-ZJ08-12V |
|---|---|
| Number of codecs supported | 8 |
| Slot power supply | +12V |
| Support codecs | HDMI codecs |
| Power supply | AC100 ~ 240V 50/60 Hz |
| Power consumption | 100W |
| Temperature | Storage and use temperature: - 20 ℃~+70 ° C |
| Humidity | Storage and use temperature: 10%~90% |
| Product size (mm) | 482.6(L)x195(W)x310.3(H) |
| Outer package size (mm) | 542 ( L ) x318 ( W ) x435 ( H ) |
| MTBF | 3, 0000 hours |
| Weight | 3.29KG |
| Warranty | One year free warranty |
