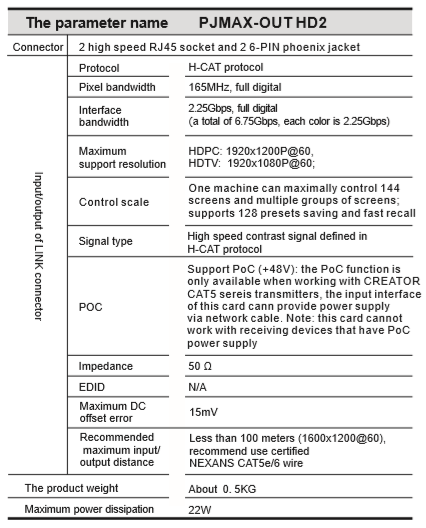

PJMAX-OUT HD2

● 2 channels high speed RJ45 interface output,2 channels 6PIN Phoenix Interface.
● Support image splicing function.
● Maximum 100 meters output distance with Cat5e/Cat6 cables.
● Support hot-swap function.
● Support IR serial port output; I/O switching card optional; support IR serial port switching.
● Compatible with H-CAT protocol.
● Support POC power supply: needs to work with POC power supply and only available for models with 3636 or bigger size.
● Support 2 channels twisted pair image splicing output; support onboard RS232, IR interfaces
● 4 windows are supported on one single screen; signals can overlap with each, roam, and be zoomed in any scales.
