PRO Series High-definition Hybrid Video wall Processor
Home
>
Products
>
Signal Management System
>
PRO Series High-definition Hybrid Video wall Processor
>
PMAX-IN UHD-HDMI2
Features

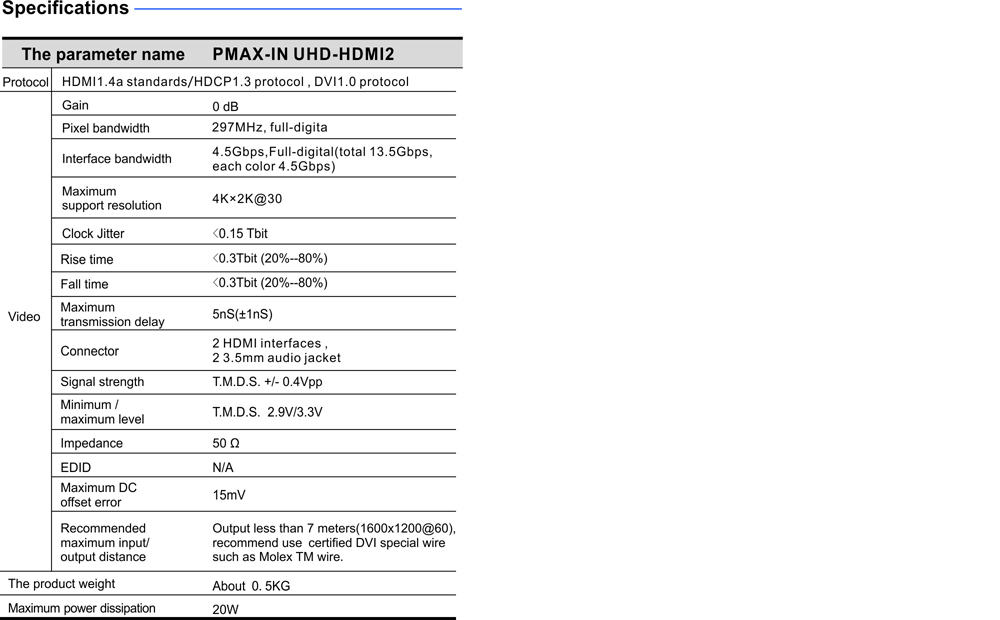

Specifications
Diagram
Drawing
Downloads
● Support 2 channels HDMI-A interface seamless input, 3.5mm audio jacket.
● Maximum outtput distance up to 7 meters.
● Support hot-swap, and audio video signal synchronized switching.
● Support analog audio and HDMI built-in audio input at the same time.
● Support EDID reading function.
● Maximally Supported Resolution: 4K×2K@30.
