PRO Series High-definition Hybrid Video wall Processor
Home
>
Products
>
Signal Management System
>
PRO Series High-definition Hybrid Video wall Processor
>
PMAX-IN VGA4
Features

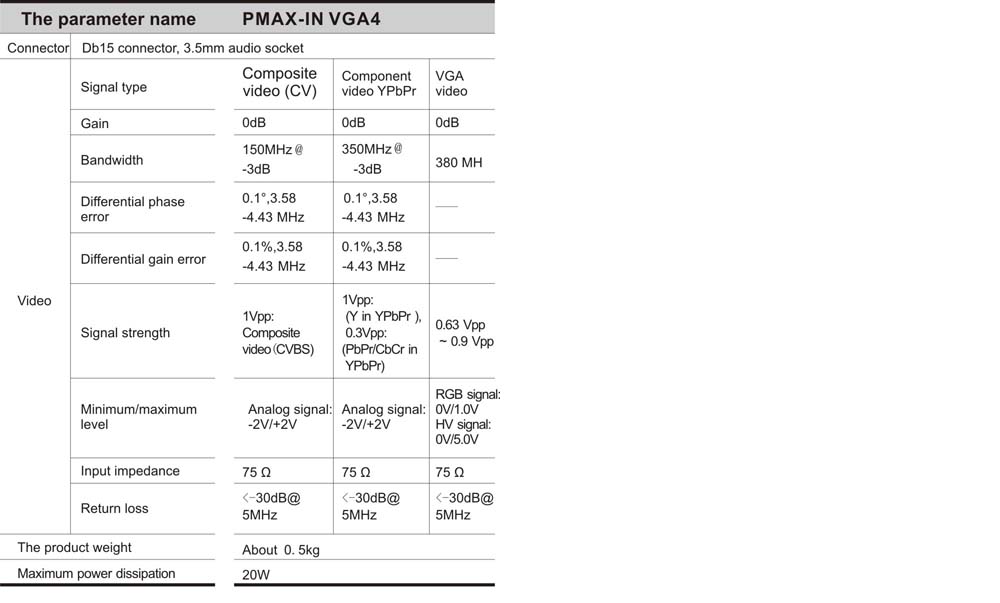

Specifications
Diagram
Drawing
Downloads
● 4 DB15 female input connectors, 4 3.5mm audio sockets.
● Support input signal formats of VGA, CVBS, YPbPr at the same time, auto-detect of the signal source.
● Support hot-swapping function; Support synchronized switching of audio and video signals; Support AUTO DELAY.
● Support analog audio input.
● Maximum input resolutions supported:
HDPC: 1920x1200P@60,
HDTV: 1920x1080P@60.
