PRO Series High-definition Hybrid Video wall Processor
>
PMAX-OUT HDMI4
Features

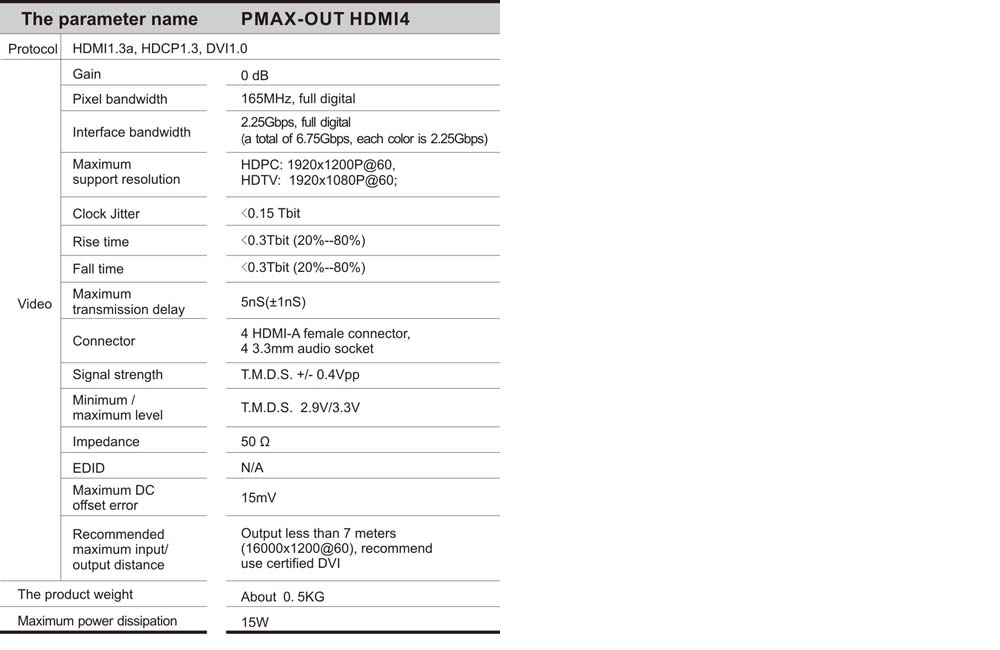

Specifications
Diagram
Drawing
Downloads
● Support 4 HDMI-A seamless output connectors; 4 3.5mm audio sockets.
● Support image splicing function.
● Maximum output distance is up to 7 meters.
● Support hot-swapping function; Support synchronized switching of audio and video signals; Support AUTO DELAY.
● Support EDID reading.
● Compatible with HDMI1.3a standards; HDCP1.3 protocol; and DVI1.0 protocol.
● Maximum supported resolution:
HDPC: 1920x1200P@60
HDTV: 1920x1080P@60.
