PJMAX-OUT SF2

Fiber optic splicing output card

PJMAX-OUT SF2

Fiber optic splicing output card

INQUIRY

Features

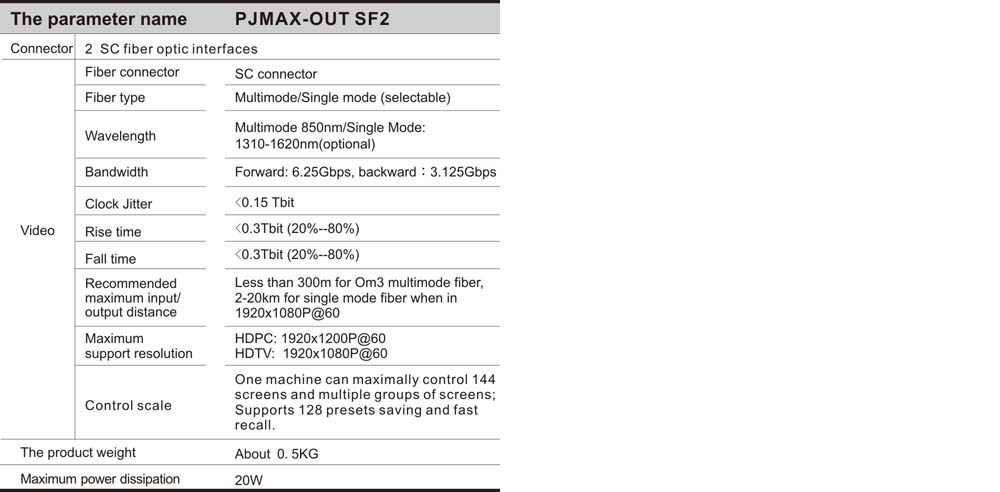

Specifications

Diagram

Drawing

Downloads

● 2 single-core fiber optic output.
● Support image splicing function.
● Support hot-swapping function.
● Working with fiber optic transmitter to realize 300 meters (multi-mode) or maximum 20Km (single mode) transmission distance.
● Optional I/O switching card to realize IR serial port switching.
● Support 2 channels single-core fiber optic seamless output; maximally supported resolution: 1920*1200@60Hz; working with CR-uSF COMP 300R to realize 300 meters (multi-mode) or maximum 20Km (single mode) transmission distance.
● 4 windows are supported on one single screen; signals can overlap with each, roam, and be zoomed in any scales.
