PRO Series High-definition Hybrid Video wall Processor
Home
>
Products
>
Signal Management System
>
PRO Series High-definition Hybrid Video wall Processor
>
PJMAX-OUT SF4
Features

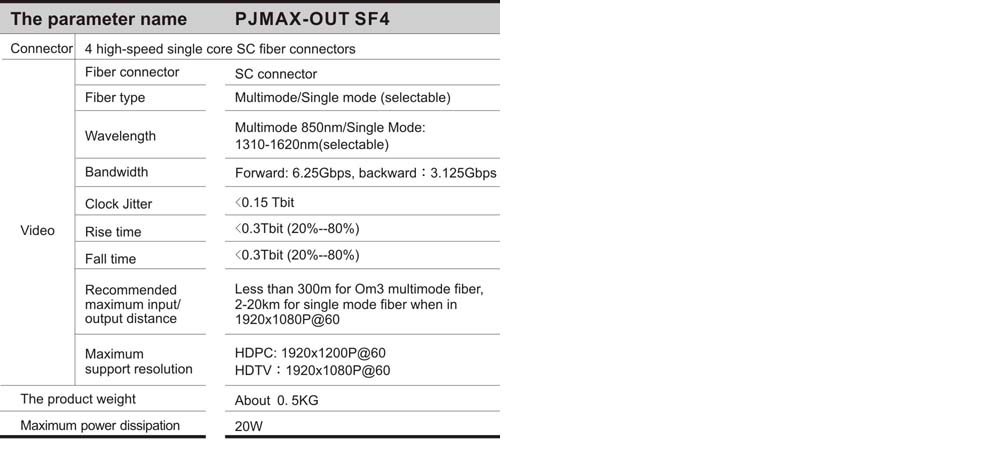

Specifications
Diagram
Drawing
Downloads
● 4 single-core fiber-optic outputs.
● Support videowall signal processing function.
● Support hot-swapping function.
● Support 4 single-core fiber-optic seamless outputs; maximum supported resolution is up to 1920*1200@60HZ when working with CR-uSF COMP 300R.
● Working with the fiber-optic transmitters can realize maximum 300 meters (multi-mode) or 20 kilometers (single-core) transmission distance.
● Support 2 windows on 1 single screen; signals can be overlapped, roamed, and displayed in random scale.
