PRO Series High-definition Hybrid Video wall Processor
Home
>
Products
>
Signal Management System
>
PRO Series High-definition Hybrid Video wall Processor
>
PMAX-IN DU-DVI2
Features

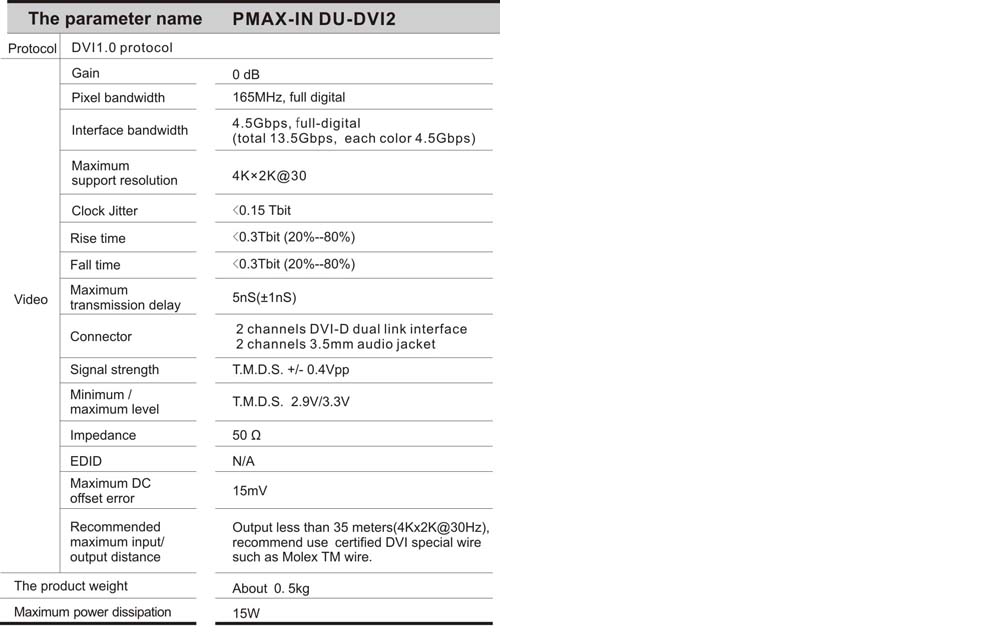

Specifications
Diagram
Drawing
Downloads
● 2 channels DVI-D dual link interface, 2 3.5mm audio sockets.
● Maximum input distance: 35m.
● Support hot-swap, and audio video signal synchronized switching.
● Support receiving video from static IP address, and automatic searching network encoding devices.
● Support analog audio input.
● Support EDID reading function.
● Maximally supported resolution: 4K*2K@30.
