PRO Series High-definition Hybrid Video wall Processor
>
PMAX-IN HDMI4
Features

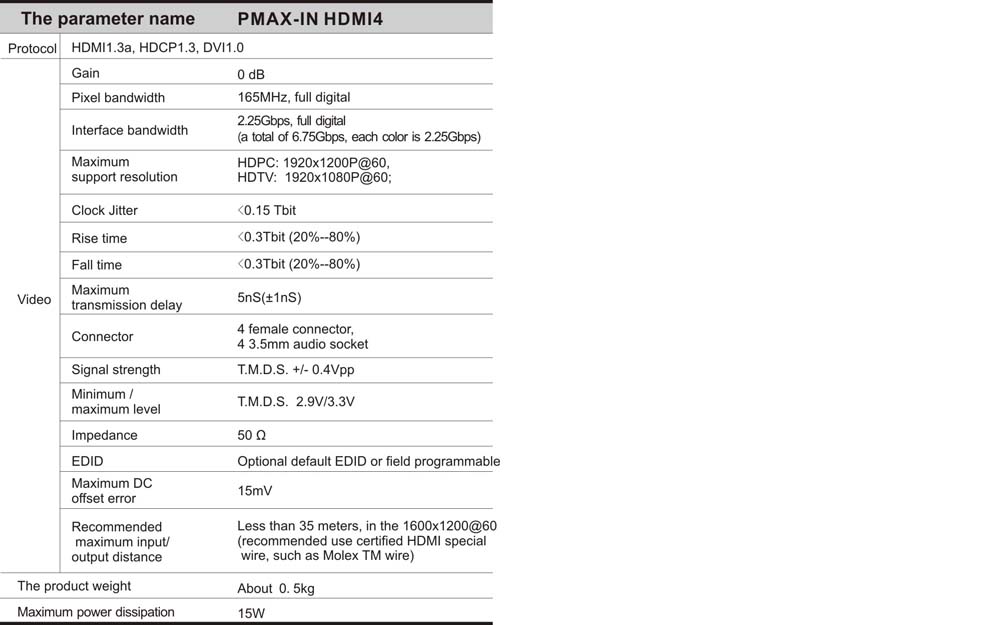

Specifications
Diagram
Drawing
Downloads
● 4 HDMI-A connectors, 4 3.5mm audio sockets.
● Maximum transmission distance is up to 35 meters.
● Support hot-swapping function; Support synchronized switching of audio and video signals; Support AUTO DELAY.
● Support input selection between analog audio and the HDMI embedded audio signals.
● Support EDID reading.
● Compatible with HDMI1.3a standards, HDCP1.3 protocols, and DVI1.0 protocols.
● Maximum supported resolution:
HDPC:1920x1200P@60,
HDTV:1920x1080P@60.
