CR-BDET86-RX

4K HDBaseT Extender

CR-BDET86-RX

CR-BDET86-RX is a 4K60 HDMI receiver for wall-plate transmitter CR-uCAT5 DET86. The extenders can extend HDMI high-definition signal, bidirectional IR control signal, bidirectional RS-232 control signal and USB 2.0 signal over CAT6 to the distance up to 328ft/100m (HBT mode) or 492ft/150m (LRM mode). Video resolution is up to 4K2K@60Hz (4:4:4). They also support POC function with POC control switch.

The Extender can be widely used in other fields such as video conference system, multimedia signal broadcasting, HDMI signal extension, etc.

INQUIRY

Features

Specifications

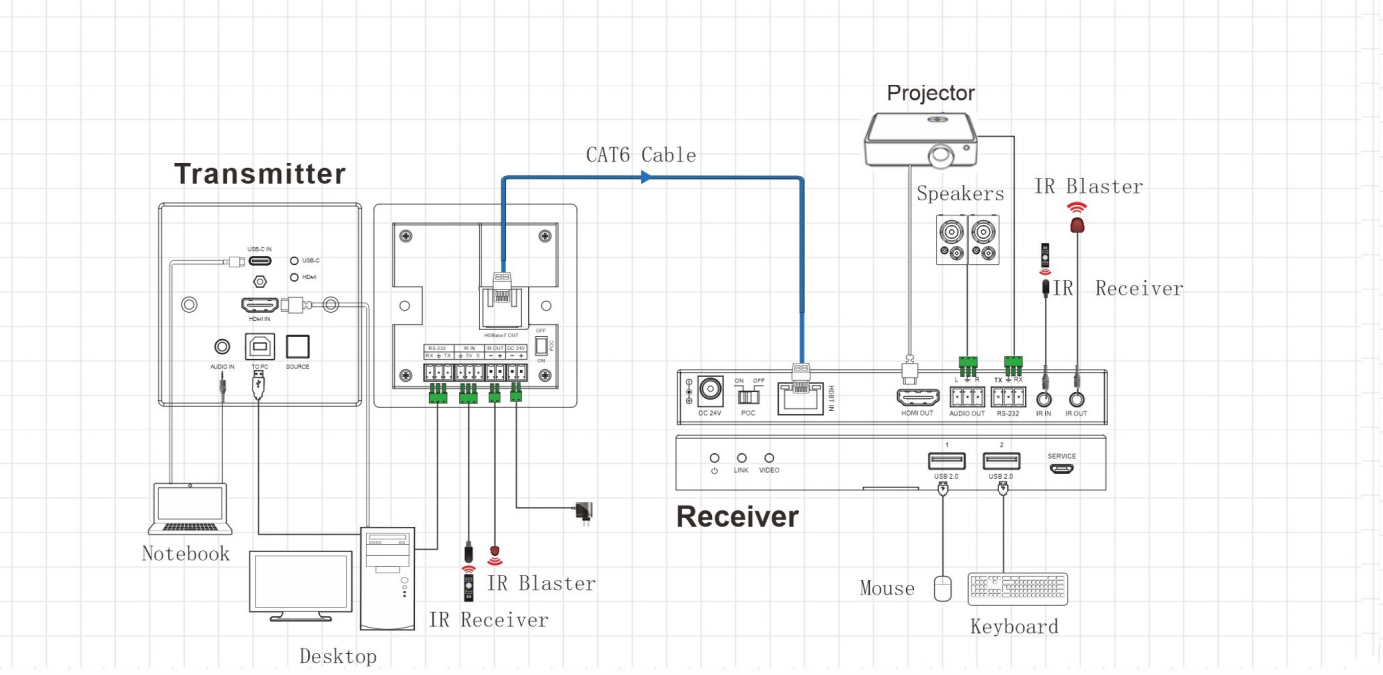

Diagram

Drawing

Downloads

HDMI 2.0b, HDCP 2.2/1.x and DP 1.2a compliant
HDMI input supports 18Gbps video bandwidth
USB input supports 5.4Gbps video bandwidth
Support video resolution up to 4K2K@60Hz (4:4:4)
Up to 7.1 channels HD audio
Input signal source selection supports button switching
Built-in mode DIP switch for selecting the HBT mode or LRM mode:

HBT mode: Audio and video signals can be transmitted up to 328ft/100m for 4K60/4K30/1080P

LRM mode: Audio and video signals can be transmitted up to 492ft/150m for 4K30/1080P
Built-in EDID DIP switch supports intelligent EDID management
Built-in audio DIP switch supports analog audio embedding
Built-in POC switches, when both POC switches of TX and RX are turned on, the Extender supports bidirectional 24V POC function, that is, either TX or RX is powered by 24V1A power supply, the another does not need power supply from the DC jack
Transmit bidirectional Infrared control signal together with the HDMI signal
IR IN is a 5V power supply level
Transmit bidirectional RS-232 control signal together with the HDMI signal
The receiver supports USB 2.0 signal transmission
The transmitter fits standard 86mm×86mm wall box

The parameter name	CR-BDET86-RX
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	HDMI: 18Gbps; USB-C : 5.4Gbps
HDMI Video Resolution	Up to 4K2K@60Hz 4:4:4
Color Space	RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12bit
HDMI Audio Formats	LPCM 7.1CH, Dolby True HD and DTS-HD Master (Full format)
Analog Audio Embedding	48KHz

The parameter name	CR-BDET86-RX
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	HDMI: 18Gbps; USB-C : 5.4Gbps
HDMI Video Resolution	Up to 4K2K@60Hz 4:4:4
Color Space	RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12bit
HDMI Audio Formats	LPCM 7.1CH, Dolby True HD and DTS-HD Master (Full format)
Analog Audio Embedding	48KHz
Transmission Distance	LRM mode: 492ft/150m (4K30/1080P) STD-HBT mode: 328ft/100m (4K60/4K30/1080P)
ESD Protection	Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Interface	Input: 1 x HDBT IN [RJ45] Output: 1 x HDMI OUT [Type A, 19-pin female], 1 x AUDIO OUT [3pin-3.81mm Phoenix connector] Control: 2 x USB 2.0 [USB Type A], 1 x RS-232 [3pin-3.81mm Phoenix connector], 1 x IR IN [3pin-3.81mm Phoenix connector], 1 x IR OUT [2pin-3.81mm Phoenix connector], 1 x SERVICE [Micro USB]
Color	Black
Dimensions	157.2mm [W] x 88mm [D] x 20mm [H]
Weight	377g
Power Consumption (Max)	12.48W (Max)
Power Supply	24V/1A (supporting bidirectional POC power supply)
Operating Temperature	32 - 104°F / 0 - 40°C
Storage Temperature	-4 - 140°F / -20 - 60°C
Relative Humidity	20 - 90% RH (no condensation)
