4K HDBaseT Extender
CR-uCAT5 WP70T
CR-uCAT5 WP70T HDMI Wall-plate supports one HDMI input and analog audio input within a standard 86mm×86mm wall box. The HDBaseT port over a single CAT6/6a cable can extend transmission distance up to 230ft / 70m for 1080P signal or 131ft / 40m for 4K signal.
The video resolution is up to 4K@60Hz 4:4:4. It supports audio embedding, and the reciver supports audio de-embedding. This product supports two-way IR and RS-232 signal control, EDID management and 24V POC function. It can be directly connected with an HDBT projector via a 70m CAT cable.
CR-uCAT5 WP70T offers ideal solutions for homes, offices, digital entertainment centers, control centers, conference rooms, schools and corporate training environments, where require HDMI source and transmission over long distance.
INQUIRY
The video resolution is up to 4K@60Hz 4:4:4. It supports audio embedding, and the reciver supports audio de-embedding. This product supports two-way IR and RS-232 signal control, EDID management and 24V POC function. It can be directly connected with an HDBT projector via a 70m CAT cable.
CR-uCAT5 WP70T offers ideal solutions for homes, offices, digital entertainment centers, control centers, conference rooms, schools and corporate training environments, where require HDMI source and transmission over long distance.
Features
Specifications

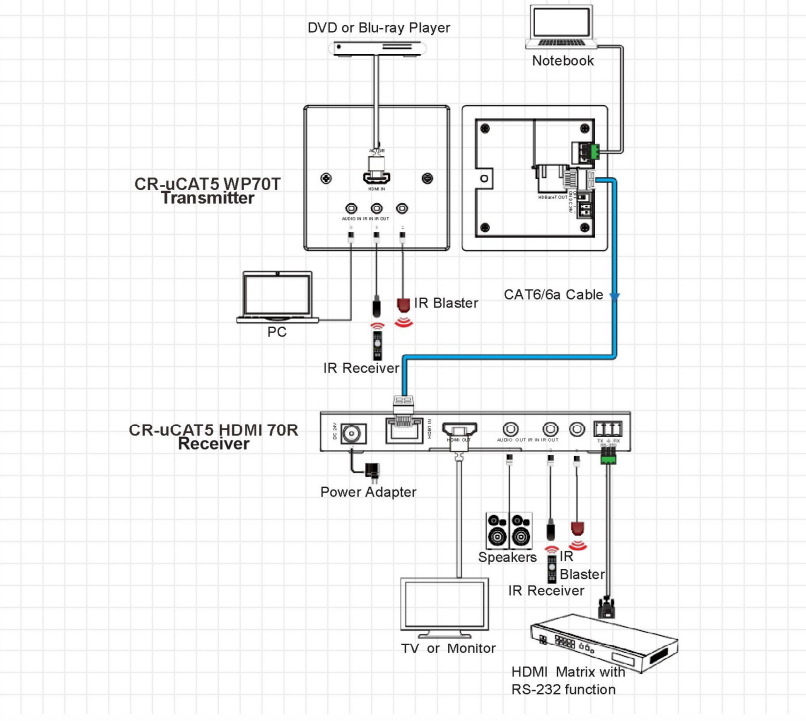

Diagram
Drawing
Downloads
- HDMI 2.0b and HDCP 2.2 compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K@60Hz 4:4:4
- Transmission distance can be extended up to 230ft / 70m for 1080P signal or 131ft / 40m for 4K signal via a single CAT6/6a cable
- Transmitter supports audio embedding, Reciver supports audio de-embedding
- Support two-way IR and RS-232 control
- Standard 86mm×86mm wall box
- POC 24V or local DC 24V power supply
| The parameter name | CR-uCAT5 WP70T |
|---|---|
| Input interface | 1×HDMI IN [Type A, 19-pin female], 1×AUDIO IN [3.5mm Stereo Mini-jack] |
| Output interface | 1×HDBaseT OUT [RJ45] |
| Control interface | 1×RS-232 [Phoenix jack], 1×IR IN [3.5mm Stereo Mini-jack], 1×IR OUT [3.5mm Stereo Mini-jack], 1×SERVICE [Micro-USB jack] |
| Housing | Aluminium Enclosure — Front Panel, Metal Enclosure — Rear Panel |
| Color | White — Front Panel, Black — Rear Panel |
| Dimensions | 86mm[W] x 86mm[D] x 38mm[H] |
| Weight | 185g |
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 9W (POC) |
| Operating Temperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
