CR-UCAT HDMI150U2R

4K HDBaseT Extender

CR-UCAT HDMI150U2R

CR-UCAT HDMI150U2R is a receiver which can extend HDMI signal, bi-directional IR control signal and USB KVM signal to a distance up to 492ft / 150m (Long Reach Mode) via a single CAT6 cable. This product converts HDMI signal to standard HDBaseT signal and transmits it through LAN cable. It can easily control signal source device or display device from the remote end through bi-directional IR signal pass-through function. Video resolution is up to 4K2K@60Hz YUV 4:4:4. It also supports POC.

CR-UCAT HDMI150U2R offers ideal solutions for homes, offices, digital entertainment centers, control centers, conference rooms, schools and corporate training environments, where require HDMI source and transmission over long distance.

INQUIRY

Features

Specifications

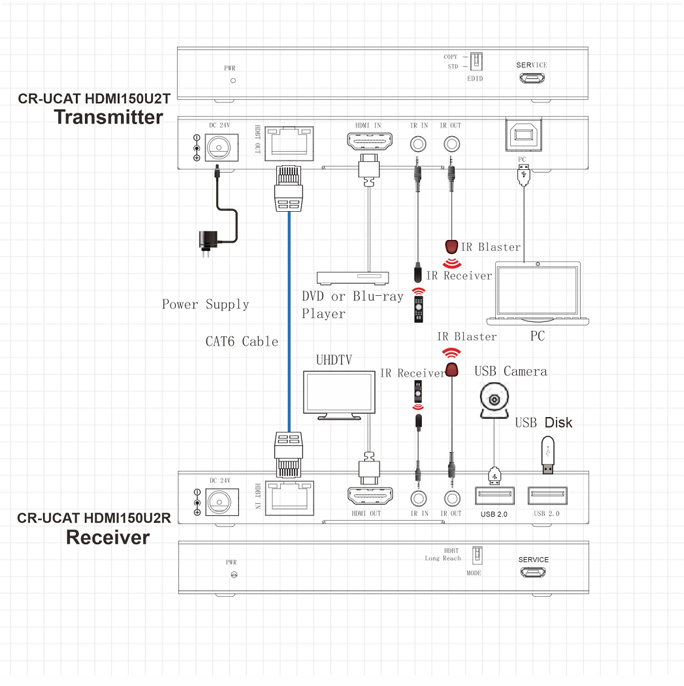

Diagram

Drawing

Downloads

HDMI 2.0b and HDCP 2.2 compliant
Support 18Gbps video bandwidth
Support video resolution up to 4K2K@60Hz YUV 4:4:4
With Mode DIP switch to select HDBaseT Mode & Long Reach Mode:

HDBaseT Mode: USB supports USB 2.0 transmission (support connecting with USB camera, USB flash drive and other devices); the audio & video signal transmission distance can be extended up to 328ft / 100m for 4K60

Long Reach Mode: USB only supports HID (Human Interface Device) device; the audio & video signal transmission distance can be extended up to 492ft / 150m for 1080P or 394ft / 120m for 4K@60
Bi-directional IR signal and USB KVM signal pass-through are supported
Support bi-directional POC (Power over Cable) function
Advanced EDID management
Compact design for easy and flexible installation

The parameter name	CR-UCAT HDMI150U2R
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	18Gbps
Video Resolution	Up to 4K2K@60Hz YUV 4:4:4
USB Compliance	USB 2.0
IR Level	5Vp-p
IR Frequency	Wideband 20K-60KHz
Input DDC Signal	5.0 volts/P-P
Transmission Distance	HDBaseT Mode: 4K60--328ft / 100m Long Reach Mode: 1080P--492ft / 150m, 4K60--394ft / 120m
Color Space	RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12bit
Interface	Input: 1×HDBT IN [RJ45 with light], 1×IR IN [3.5mm Stereo Mini-jack], 1×SERVICE [Micro-USB jack] Output: 1×HDMI OUT [Type A, 19-pin female], 1×IR OUT [3.5mm Stereo Mini-jack], 2×USB 2.0 [USB-A, 4-pin female]
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Format	LPCM 7.1CH, Dolby True HD and DTS-HD Master
ESD Protection	Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Housing	Metal Enclosure
Dimensions	140mm (W) × 65mm (D) × 18mm (H)
Weight	Transmitter: 245g, Receiver: 249g
Power Supply	DC 24V/1A; Support bi-directional POC function
Power Consumption	13.2W (Max.)
