4K HDBaseT Extender

CR-UCAT HDMI150T

The 18Gbps HDMI Extender CR-UCAT HDMI150T can extend high definition video / audio signal, RS-232, bi-directional IR, and the distance is up to 492ft / 150 meters between transmitter and receiver via a single CAT cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One HDMI loop port is available for output. It also supports de-embeded audio for L/R audio output and PoC function. In addition, the extender is equipped with two-way IR pass-through which allows for source and display control.

CR-UCAT HDMI150T offers ideal solutions for homes, offices, digital entertainment centers, control centers, conference rooms, schools and corporate training environments, where require HDMI source and transmission over long distance.

INQUIRY

Features

Specifications

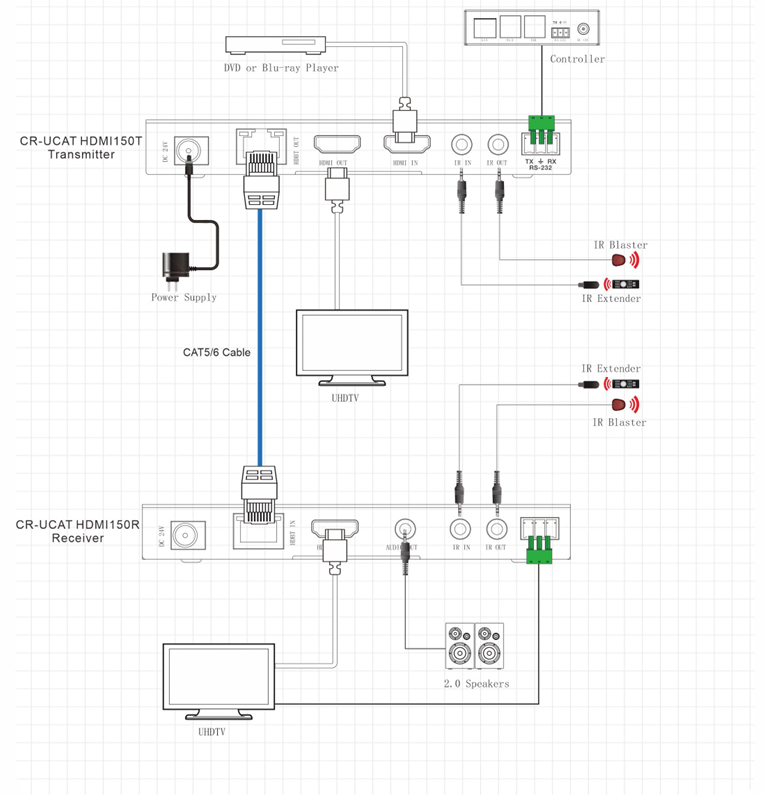

Diagram

Drawing

Downloads

HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
Support 18Gbps video bandwidth
Input and output extends distance up to 394ft / 120 meters when 4K2K signal and 492ft / 150 meters when 1080P signal
Support one HDMI loop output on transmitter
De-embeded audio to analog stereo output on receiver
With bi-directional IR, RS-232 and CEC pass-through
Support HDR, HDR10+, Dolby Vision and HLG function
Support PoC (Power over Cable)
Compact design for easy and flexible installation

The parameter name	CR-UCAT HDMI150T
HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2 / 1.4
Video Bandwidth	18Gbps
Temperature	Operating: 32 - 104°F / 0 - 40°C Storage: -4 - 140°F / -20 - 60°C
Relative Humidity	20 - 90% RH (no condensation)
ESD Protection	Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Color Depth	8/10/12-bit (1080P 60Hz, 4K 30Hz, 4K 60Hz)
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Video Resolution	4K2K 50/60Hz 4:4:4; 4K2K 50/60Hz 4:2:2; 4K2K 50/60Hz 4:2:0; 4K2K 30Hz 4:4:4; 1080p, 1080i, 720p, 720i, 480p, 480i; All HDMI 3D TV formats; All PC resolutions including 1920 x 1200
Transmission distance	4K*2K: 394ft / 120M; 1080P: 492ft / 150M
Audio Format	HDMI: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS:X Analog Signal: PCM 2.0
Housing	Metal Enclosure
Dimensions	140mm [W] x 65mm [D] x 18mm [H]
Power Consumption	9.36W
Color	Black
Power Supply	Input: AC 100 - 240V 50/60Hz Output: DC 24V/1A (Locking connector)
Interface	Inputs: 1x HDMI Type A, 1x SERVICE [Mini-USB, Update port] Outputs: 1x HDMI Type A, 1x HDBT OUT [RJ45, 8-pin female] Control: 1x IR IN [3.5mm Stereo Mini-jack], 1x IR OUT [3.5mm Stereo Mini-jack], 1x RS-232 [Phoenix jack]
