CR-UCAT HDMI100H3R

4K HDBaseT Extender

CR-UCAT HDMI100H3R

CR-UCAT HDMI100H3R is a HDBaseT 3.0 Extender can extend uncompressed HD/UHD video and audio signals, eARC/ARC, RS-232, bi-directional IR, 1GbE ethernet and USB2.0 signals up to 100m/328ft via a single CAT6A/7 cable. The Transmitter supports audio embedding or de-embedding. The Receiver supports audio de-embedding. It also supports eARC/ARC from RX's HDMI output pass through to TX's HDMI input or de-embedding to TX's HDMI audio only and SPDIF output ports, USB 2.0 (Host/Device is configurable) and bi-directional POC.

CR-UCAT HDMI100H3R offers ideal solutions for homes, offices, digital entertainment centers, control centers, conference rooms, schools and corporate training environments, where require HDMI source and transmission over long distance.

INQUIRY

Features

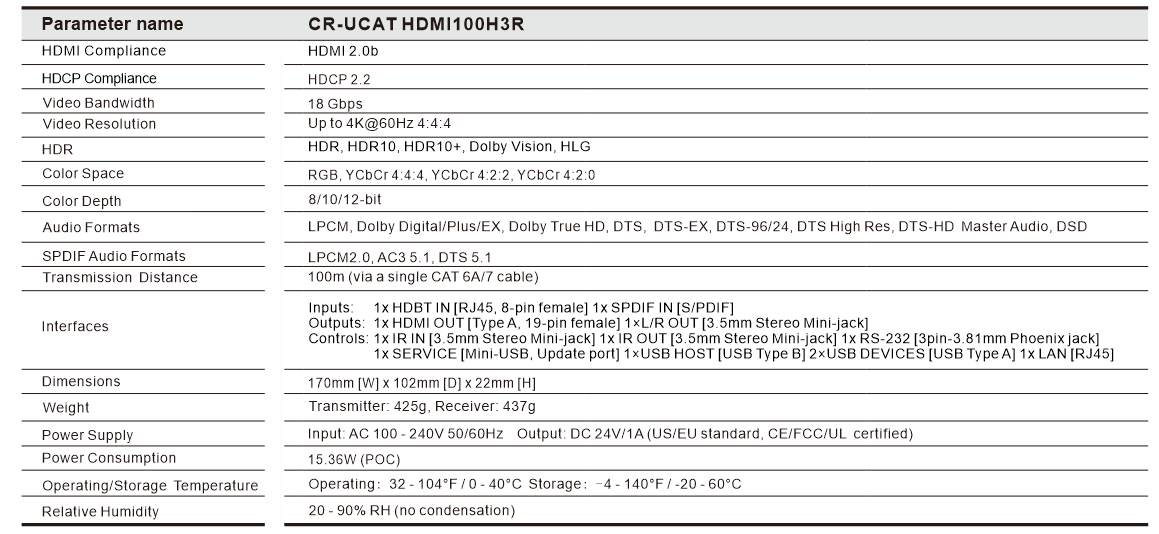

Specifications

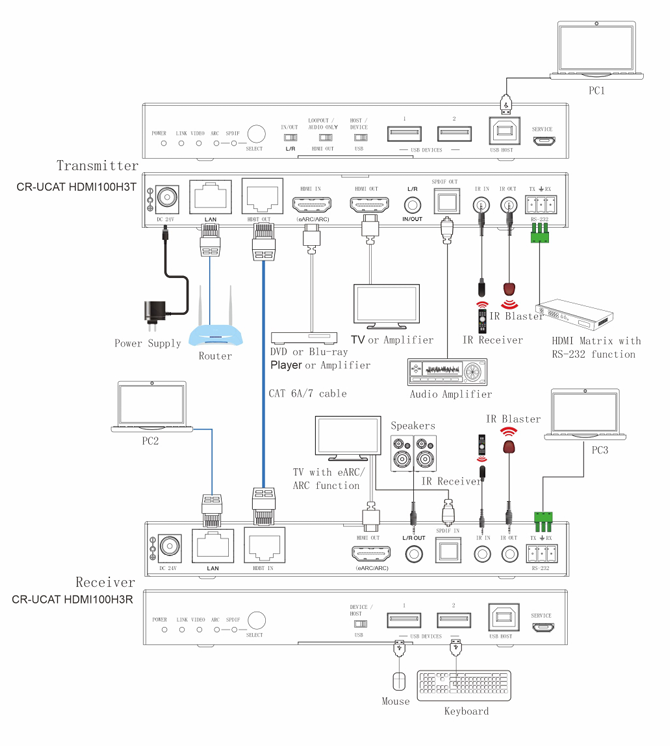

Diagram

Drawing

Downloads

● HDMI 2.0b, HDCP 2.2 and HDBaseT 3.0 compliant, uncompressed 4K@60Hz 4:4:4 up to 18Gbps video bandwidth

● Support HDR, HDR10, HDR10+, Dolby Vision and HLG pass through, LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD pass through

● Supports eARC/ARC function (the audio is returned to the HDMI IN port, HDMI OUT(AUDIO ONLY) port and SPDIF OUT port of the transmitter.)

● Transmission distance up to 328ft/100 meters via a single CAT 6A/7 cable, with Bi-directional 24V POC function

● Supports USB2.0 transmission, Host/Device is configurable, Bi-directional IR, RS-232 and 1G Ethernet signal pass through
