HomeSolid Matrix Switchers
UHD seamless HDMI switcher
CR-HD0404SW
CR-HD0404SW is a perfect solution for video transmission from 4 HDMI sources to 4 HDTV displays. It has video wall and multi-viewer functions with multiple display modes. 4x4 IR matrix, audio embedded and de-embedded are also supported. Video resolution is up to 4K@60Hz 4:4:4. Each of the sources can be individually scaled. And seamless switching ensures a smooth picture transition without frame loss.
This matrix can be controlled via front panel buttons, LCD screen, IR remote, RS-232, and Web GUI.
INQUIRY
This matrix can be controlled via front panel buttons, LCD screen, IR remote, RS-232, and Web GUI.
Features

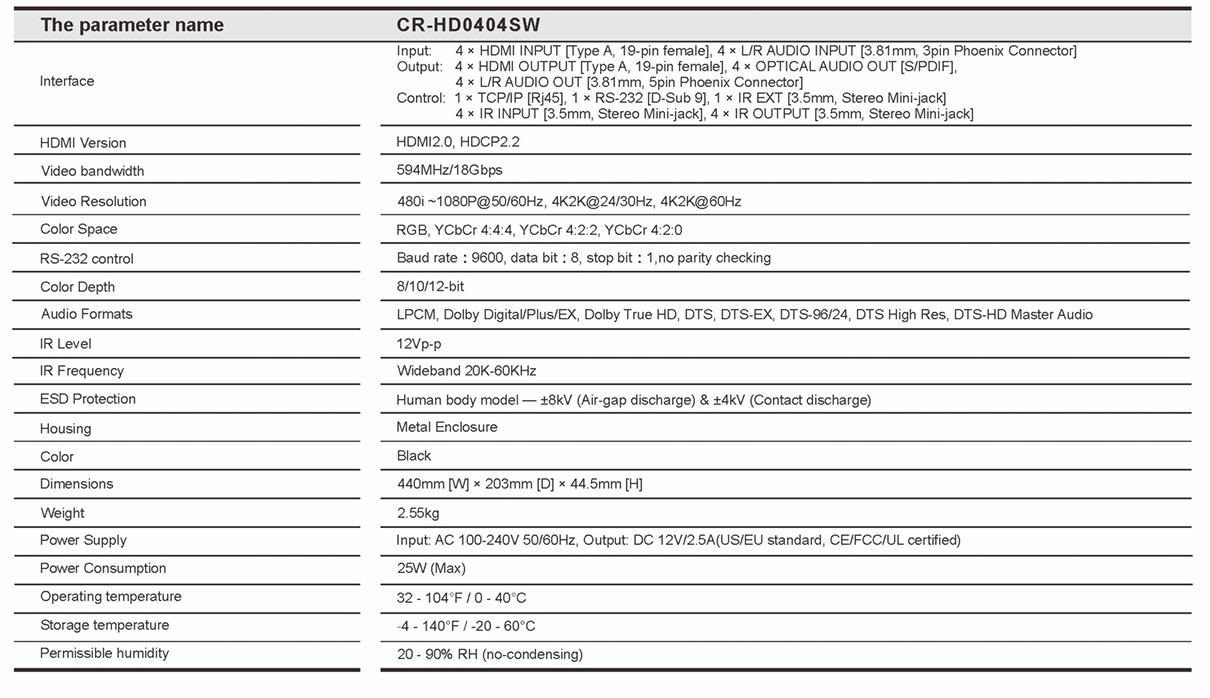

Specifications

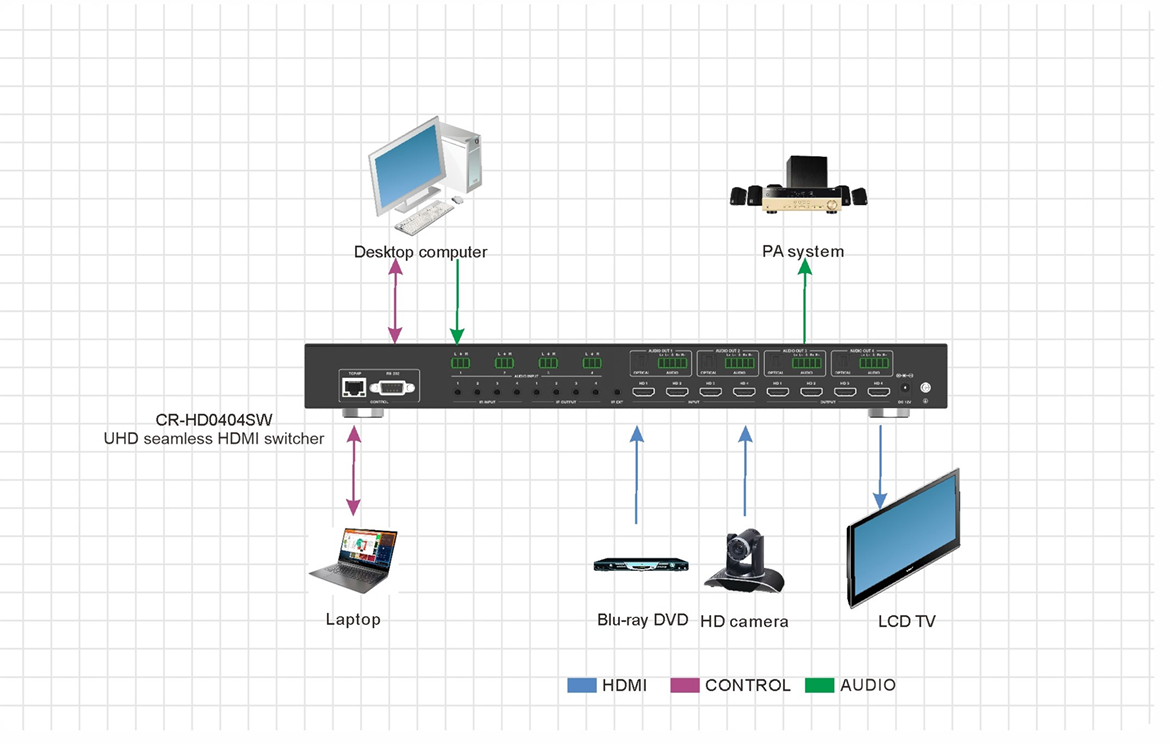

Diagram
Drawing
Downloads
● HDMI 2.0 and HDCP 2.2 compliant
● Video resolution is up to 4K@60Hz 4:4:4
● Support 18Gbps video bandwidth
● Support 12 display categories in multi-viewer mode, and 9 splicing modes in video wall mode
● HDMI audio format: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio
● Support CEC control, and multiple video resolution output
● Advanced EDID management
● Control via front panel buttons, IR remote, RS-232, and Web GUI
