UHD HDMI switcher

CR-HD0808

The CR-HD0808 is a high-performance 8x8 HDMI Matrix Switcher designed for seamless routing of ultra-high-definition video and multi-channel digital audio. It allows any of the 8 HDMI input sources to be independently routed to any of the 8 HDMI displays, making it an ideal central hub for professional AV installations.

INQUIRY

Features

Specifications

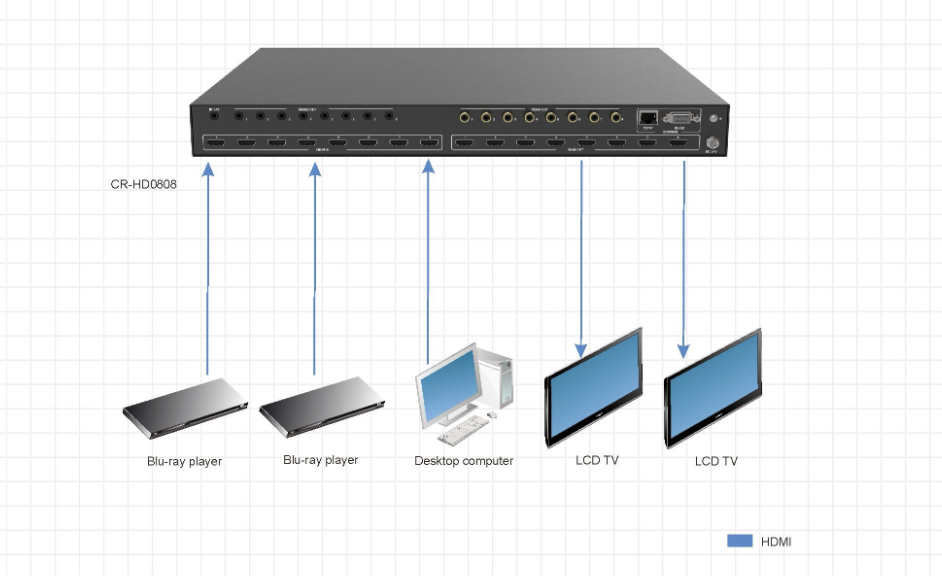

Diagram

Drawing

Downloads

● Compatible with HDMI 1.3b standard.

● HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant;

● Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports;

● Support 18Gbps video bandwidth;

● Dolby Vision, HDR10+ and HLG are supported;

● Support 4K->1080P Down Scaler for each output port;

● HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio);

● Audio de-embedded is supported via analog and coax ports;

● ARC, CEC and smart EDID management are supported;

● 1U rack mounted design with front panel OLED display;

● Control via front panel buttons, IR remote, RS-232, LAN and Web GUI.

The parameter name	CR-HD0808
HDMI version	HDMI 2.0b
HDCP version	HDCP 2.2
Video bandwidth	18Gbps
Video resolution	Up to 4K2K@50/60Hz (4:4:4)
Video color space	RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0
HDMI audio format (Pass-through)	LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
ESD Protection	Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
Input interface	8×HDMI Type A [19-pin female]; 1×IR EXT [3.5mm Stereo Mini-jack]
Output interface	8×HDMI Type A [19-pin female]; 8×Coax Audio (RCA); 8×L/R Audio [3.5mm Stereo Mini-jack]
The recommended maximum output distance	Transmission 4K/60Hz, the cable is less than 5m; transmission 4K/30Hz, the cable is less than 10m; transmission 1080P/60Hz, the cable is less than 15m;
Cover	Black metal
Size	440mm (W)×200mm (D)×44.5mm (H)
Weight	2.8kg
Power supply	Input: AC 100 - 240V 50/60Hz; Output: DC 12V/5A (US/EU standard, CE/FCC/ULcertified)
Power consumption	43W
Working temperature and humidity	-10°C ~ 45°C / 14°F ~ 113°F; 20~90% RH (non-condensing)
Storage temperature and humidity	-20°C ~ 60°C / -4°F ~ 140°F; 20~90% RH (non-condensing)
