CR-HDMI401A

UHD HDMI switcher

CR-HDMI401A

CR-HDMI401A is a high performance HDMI 4x1 switcher that supports HDTV formats up to 4Kx2K@60Hz and all HDMI 3D TV formats. It can extract HDMI stream audio to separate digital and analog audio output. This product supports HDCP repeater/CEC/ARC functions. Select any of the inputs by front panel button or IR Remote, the corresponding indicator LED on the front panel will be illuminated.

CR-HDMI401A matrix can be widely used in radio and television projects, multimedia conference halls, large-screen display projects, television teaching, command and control centers and other occasions.

INQUIRY

Features

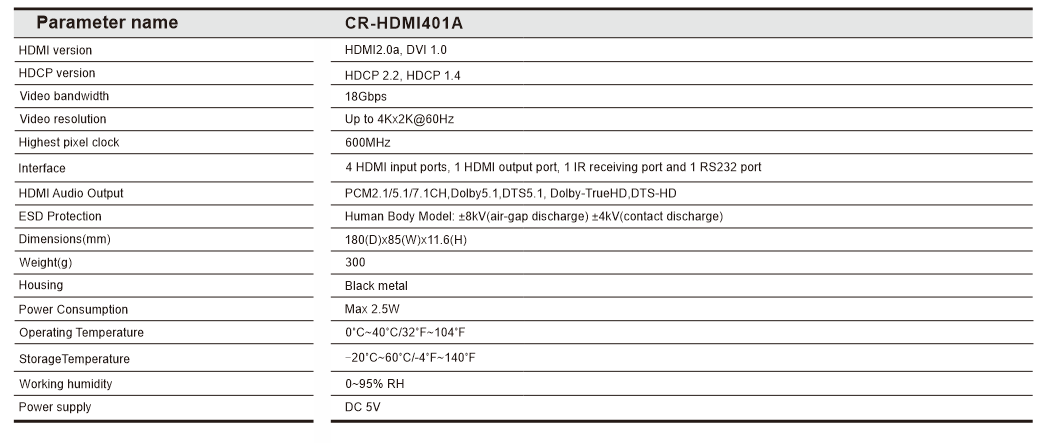

Specifications

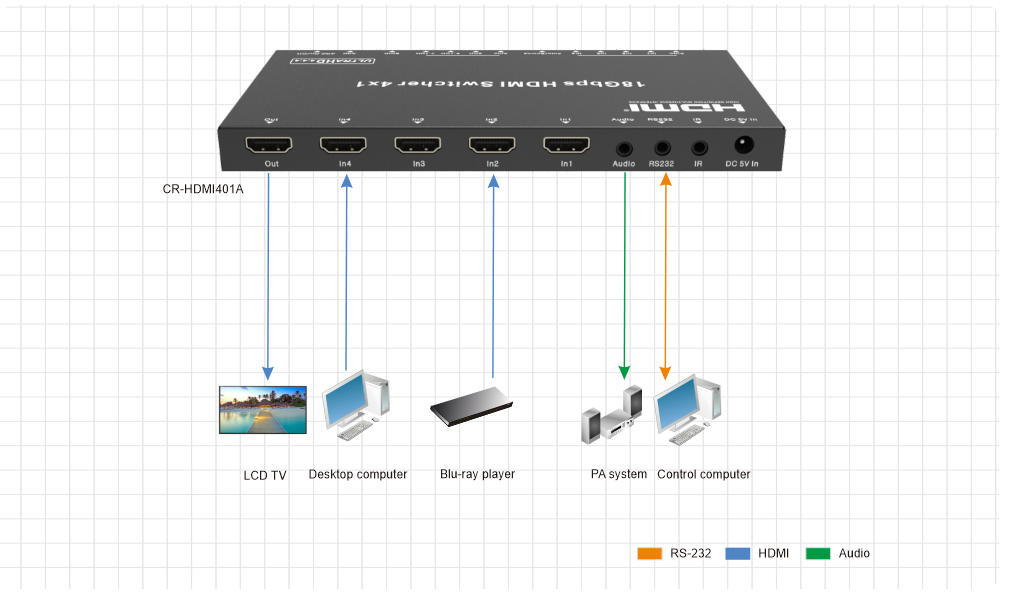

Diagram

Drawing

Downloads

● Support 4 HDMI 2.0 signal inputs, 1 HDMI 2.0 signal output;

● Compliant with HDMI 2.0a, DVI 1.0 standards.

● HDCP 2.2 and HDCP 1.4 compliant.

● Video formats up to 4Kx2K@60 and all HDMI 3D video formats.

● Support PCM, Dolby TrueHD, DTS-HD Master Audio up to 7.1CH.

● Digital and analog audio output.
