CR-IMAX42H70

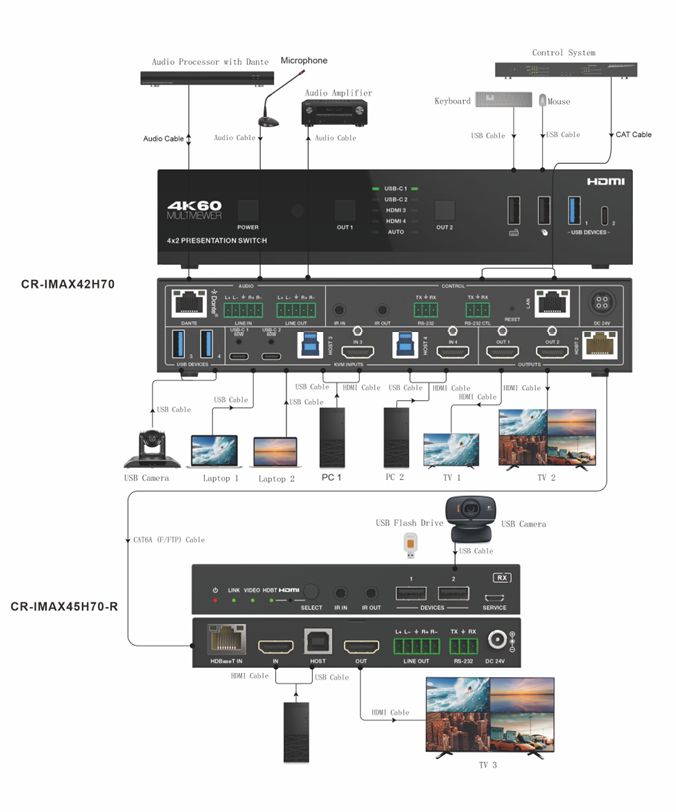

The CR-IMAX42H70 4x2 seamless presentation switch supports video resolutions up to 4K@60Hz 4:4:4 8bit deep color and HDCP 2.3 compliant, it features multi-view function for multi sources can be displayed on single screen. This presentation switch supports two HDMI outputs and one HDBaseT 3.0 mirrored with HDMI OUT2 output and HDBaseT 3.0 extending uncompressed 4K60Hz 4:4:4 up to 132ft/40m or 4K30Hz/1080P60Hz up to 230ft/70m via single Cat6A cable.

This presentation switch features four video inputs: two USB-C and two HDMI inputs. Each USB-C input supports DisplayPort alternate mode A/V up to 4K@60Hz 4:4:4 8bit deep color, USB 3.2 Gen 1 5Gbps data and up to 60 watts power charging to USB-C source device. It also features 1Gbps Ethernet over USB-C functionality to allow USB-C source device to access internet seamlessly. Local USB 3.2 KVM switching and extending USB 2.0 high speed over HDBaseT 3.0 can be allowed to connect external USB 2.0 devices or cameras from RX remote side for video conference.

This presentation switch supports audio embedded and de-embedded, it built-in audio DSP with audio mixing, matrixing, independent EQ/volume/delay adjustment. It also supports Dante 2x2 audio input and output interface, and it can be seamlessly connected to any existing audio processing system with Dante enabled.This presentation switch can be controlled via front panel buttons, IR remote control, API commands using RS-232 or TCP/IP. A Web server / GUI is built in that features A/V control, automatic display control and input EDID management. The product is ideal for software based video teleconference rooms.

This switcher is a suitable solution for presentation purpose at classroom and conference room.
