HDMI Multiviewer Seamless UHD Video Switcher

CR-UHD0401P

The CR-UHD0401P 4K60 4x1 Multiviewer Seamless UHD Video Switcher was developed for the purpose of supporting higher output resolution (4K@60) for multiple sources on a single screen. It can combine up to four video signals onto a single UHD or HD displayer. The user can easily manage each input via the supplied Control Software and create any layout and position of any of the four inputs on a single monitor. It supports full range of input video resolutions up to 4K@60 (RB) and audio RCA /Optical de-embedding supported for external audio distribution systems.

It can be controlled via front panel buttons, IR remote, RS-232 commands.

INQUIRY

Features

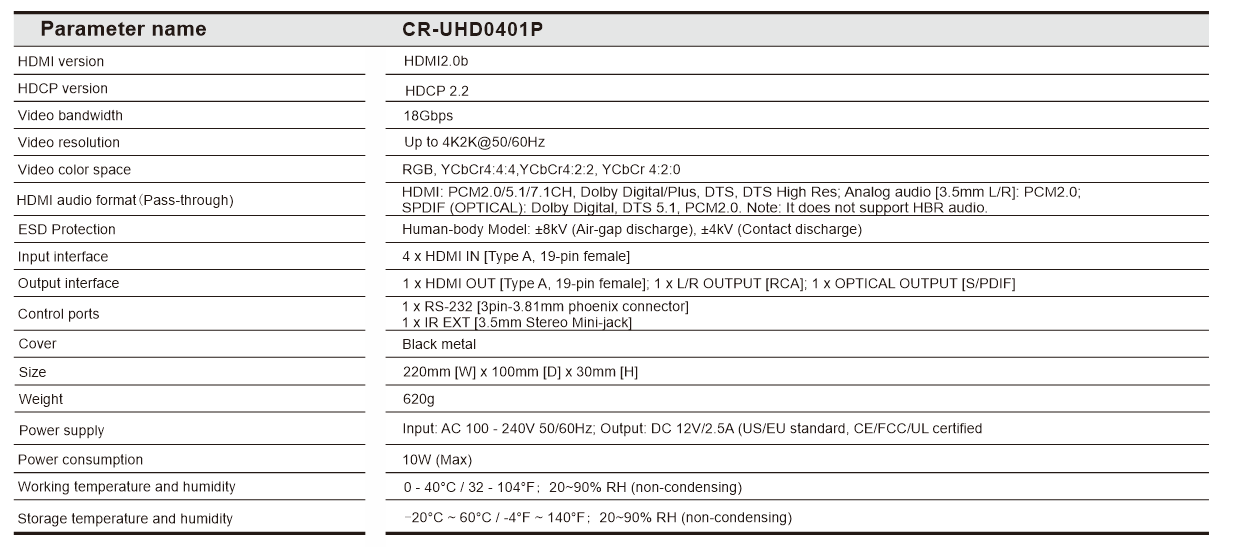

Specifications

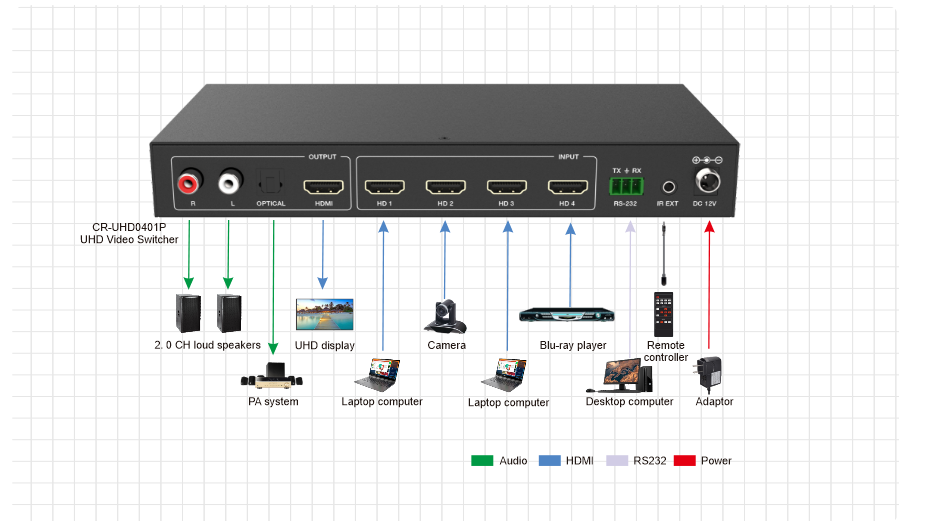

Diagram

Drawing

Downloads

● HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant

● Support 18Gbps video bandwidth

● Input and output resolutions support up to 4K@60Hz

● Support LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel

● Seamless switching between input channels and combined multiple images on single UHD monitor

● Up to 8 display modes: SINGLE, PIP, PBP (1), PBP (2), Triple (1),Triple (2), Quad (1), Quad (2)
